G-1072 2-Pin Sealed Waterproof Electrical Wire Connector Plug, Male and Female, 22-16 AWG, Grey

Description

G-1072 2 PIN WAY SEALED GRAY MALE AND FEMALE AUTO WATERPROOF ELECTRICAL WIRE CONECTOR PLUG 22-16AWG — BOLTON SKU 55369.

g-1072 2 pin way sealed waterproof connector: overview

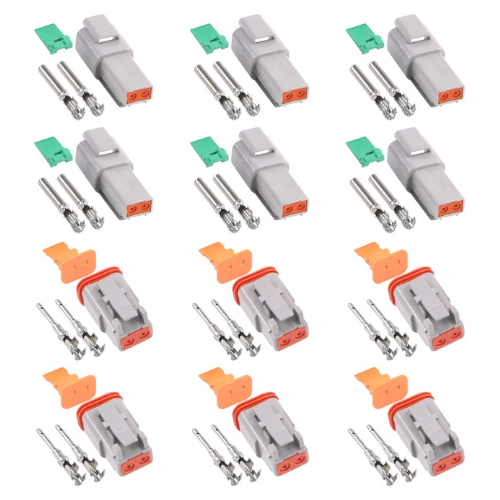

The G-1072 is a two-position sealed in-line connector set of the automotive waterproof type, supplied as mating grey male and female housings for wire sizes from 22 to 16 AWG, as stated in the product designation. BOLTON’s own quotation record for this item describes each kit as a connector plug together with two male and two female crimp terminals, which is the terminal count a two-way mating pair requires. Connectors of this family are assembled by crimping the contacts onto the conductors, fitting individual wire seals, and inserting the terminated wires into the housings; elastomeric seals at the wire entries and at the housing interface exclude moisture and dust once the halves are latched together. This lets a harness be split and reconnected in an exposed position without leaving conductors open to water ingress. Contact plating, current rating and any ingress-protection class are not stated in the item record and are not claimed here.

Key specifications

Typical applications

Sealed two-way connectors of this style are used on vehicle and equipment harnesses for lighting, sensor and low-current power circuits exposed to weather, wash-down or dust. They are common in fleet maintenance, ground support equipment and general MRO electrical repair work, where a serviceable break in the harness is needed at a point that will get wet.

Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).

Browse more in Wire & Cable.
