Description

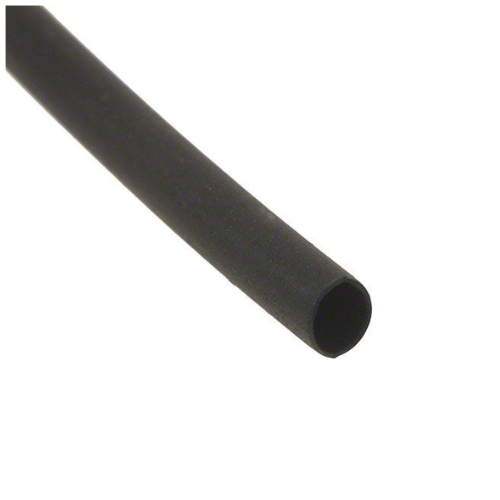

SFTW203 Heat Shrink Tubing, 1/8″, Black — BOLTON SKU 59611.
About the SFTW203 Heat Shrink Tubing, 1/8″, Black
Catalogued as sftw203 1/8 bl spl3mheatshrink sftw203, this is 3M Heat Shrink Tubing SFTW-203 in the 1/8 in size, black, supplied spooled. SFTW-203 is a very flexible, heat-shrinkable polyolefin with a 3:1 shrink ratio, meaning it recovers to roughly a third of its as-supplied internal diameter. That high recovery makes it the practical choice for end terminations where a connector body is larger than the cable behind it, and for repair work where the tubing has to slide over a connector before being shrunk down. The material is mechanically tough, chemically resistant and readily surface printed. It is engineered for a low shrink temperature of 100 °C so it recovers quickly with minimal heat exposure to temperature-sensitive substrates, and is rated for continuous operation from -55 °C to 135 °C, withstanding 300 °C for brief periods.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer / product | 3M Heat Shrink Tubing SFTW-203 |
| Material | Very flexible heat-shrinkable polyolefin |
| Shrink ratio | 3:1 — recovers to 33% of as-supplied internal diameter |
| Size 1/8 expanded ID (min) | 0.118 in (3.0 mm) |
| Size 1/8 recovered ID (max) | 0.039 in (1.0 mm) |
| Size 1/8 recovered wall (nominal) | 0.022 in (0.55 mm) |
| Shrink temperature | 100 °C |
| Continuous operating range | -55 °C to 135 °C (300 °C for brief periods) |
| Approvals | UL Recognized file E-48398; CSA Certified LR38227 |
| Colour | Black |
Typical applications
The 1/8 in size recovers to a 1.0 mm internal diameter, which places it at the fine end of the range — individual conductors, small wire breakouts, component leads and thin sleeve marking rather than full bundles. The 3:1 ratio still lets it pass over a small terminal or joint before recovering tightly onto the wire behind it. Spooled supply suits benches doing repetitive short cuts, and the printable surface allows circuit identification to be applied to the sleeve.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
