Description
CAT6 UTP Ethernet Cable, 305 m (1000 ft), 550 MHz, 23 AWG, Copper Clad Aluminium (CCA), Gr — BOLTON SKU 72878.
About the CAT6 UTP Ethernet Cable 305

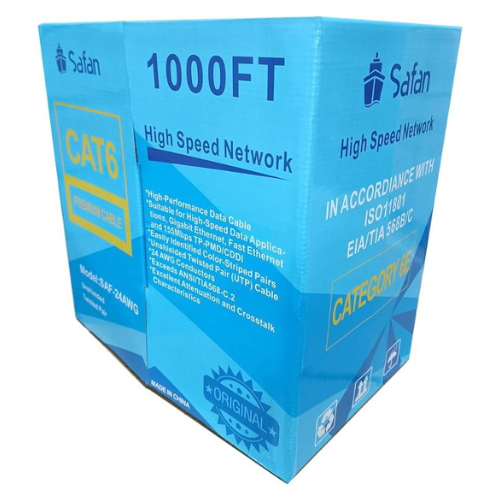

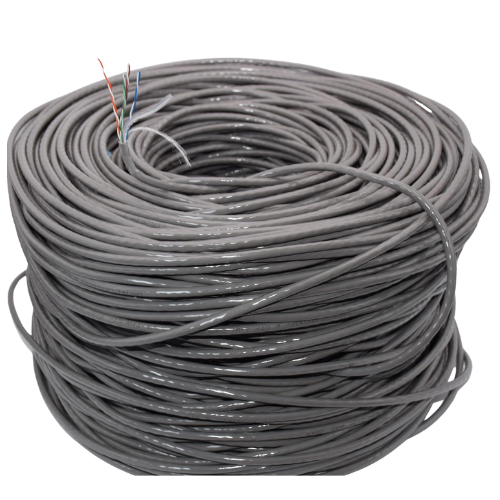

Supplied under the safan cat6 utp ethernet cable designation, this is a Category 6 unshielded twisted pair installation cable in a 305 m (1000 ft) box — the standard drum length for structured cabling work, cut to length on site as each run is pulled. The cable is rated to 550 MHz, above the 250 MHz baseline associated with Category 6, and uses 23 AWG conductors, the heavier of the two gauges commonly used in Cat 6 horizontal cable. Conductors are copper-clad aluminium rather than solid copper: an aluminium core with a copper outer layer, which lowers cost and weight while carrying high-frequency signal in the copper skin. CCA behaves differently from solid copper on DC resistance, so it is not suited to Power over Ethernet runs at higher power classes and is not a substitute where a solid-copper specification is mandated. Confirm the application before ordering.
Key specifications
| Attribute | Value |
|---|---|
| Category | Cat 6 |
| Construction | U/UTP — unshielded twisted pair |
| Bandwidth rating | 550 MHz |
| Conductor size | 23 AWG |
| Conductor material | Copper-clad aluminium (CCA) |
| Box length | 305 m (1000 ft) |
Typical applications
A 305 m box of unshielded Cat 6 is the working stock for horizontal cabling — desk and workstation outlets, wireless access points, IP cameras and general office or facility data runs back to a patch panel. The 23 AWG conductor supports full-length channel runs, and the 550 MHz rating gives headroom over the Cat 6 minimum. Because the conductors are CCA, confirm PoE class and any solid-copper requirement in the project specification before this cable is selected.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
