M22759/18-22-9-Wire Single Conductor 22 AWG — BOLTON SKU 70201.
About the M22759/18-22-9 Aerospace Wire

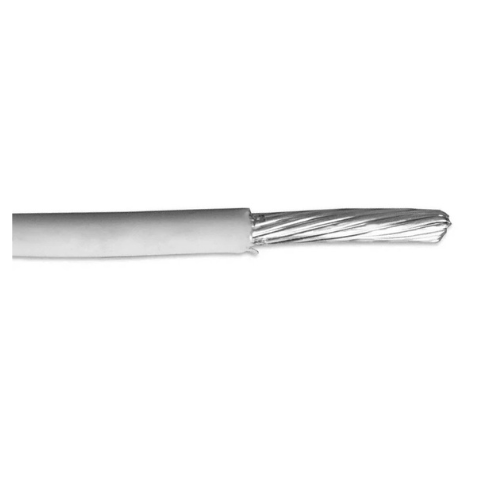

M22759/18-22-9 is a single-conductor airframe and hook-up wire qualified to the M22759/18 military specification sheet (SAE AS22759 family). The /18 construction pairs a tin-plated copper conductor with thin-wall extruded ETFE (ethylene tetrafluoroethylene) insulation, rated at 600 V and 150 °C. The thin-wall ETFE jacket is chosen for aerospace wiring where light weight, tight diameter tolerance, mechanical toughness and chemical resistance are required. In the part number, ‘-22’ designates a 22 AWG conductor — built as 19 strands of 34 AWG tinned copper per distributor construction data — and the final ‘-9’ is the colour code for white insulation to the MIL-STD-104 colour system. For the 22 AWG size, distributor data lists a nominal conductor diameter of 0.038 in with a finished insulation diameter of 0.049-0.053 in. BOLTON supplies this wire against RFQ with traceability to the governing specification where required.
Key specifications
| Type | Single-conductor airframe / hook-up wire |
|---|---|
| Specification | M22759/18 (SAE AS22759 family) |
| Conductor | 22 AWG tin-plated copper, 19/34 stranding |
| Insulation | Thin-wall extruded ETFE |
| Voltage rating | 600 V |
| Temperature rating | 150 °C |
| Colour | 9 — white (MIL-STD-104) |
| Finished diameter | 0.049-0.053 in |
Typical applications
M22759/18 wire is used throughout aircraft, UAV and defence-electronics harnessing for point-to-point wiring and harness build where a lightweight, fluid-resistant 150 °C wire is specified. It is standard stock in avionics shops and MRO harness bays for production and repair work.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
