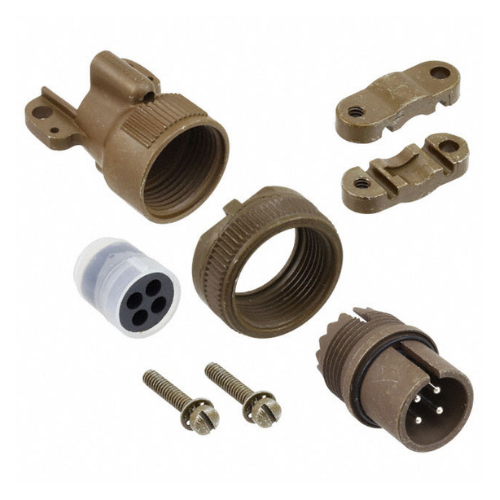

MS3106F14S-2P-(Connector, Plug, Straight, with strain relief and end bell, 4 #16 Pin Contacts, MIL-C-5015) — BOLTON SKU 56639.
About the MS3106F14S-2P Connector Accessory
The MS3106F14S-2P is a straight, cable-mounting circular plug from the MS3106 family built to MIL-DTL-5015 (formerly MIL-C-5015). The F class denotes the environment-resistant version supplied with a strain-relief cable clamp and end bell. Shell size 14S with insert arrangement 14S-2 gives four contacts in size 16, terminated by solder, and the P suffix identifies pin contacts. MIL-DTL-5015 connectors use threaded coupling with a single key and keyway for polarisation, a design intended for service where vibration, moisture, pressure and temperature are severe. Shells in this family are machined from aluminium alloy and contacts are copper alloy with a plated finish. The series offers a large library of insert patterns, so the shell size and insert arrangement together define the contact count and layout rather than the shell size alone.
Key specifications
| Manufacturer part number | MS3106F14S-2P |
|---|---|
| Series | MS3106, MIL-DTL-5015 (MIL-C-5015) |
| Style | Straight plug, cable mounting |
| Class | F — environment resistant, with cable clamp and end bell |
| Shell size | 14S |
| Insert arrangement | 14S-2 |
| Contacts | 4, size 16, pin |
| Termination | Solder |
| Coupling | Threaded |
Typical applications
MIL-DTL-5015 circular plugs of this type are used on ground support equipment, vehicle and shelter power and signal harnesses, test sets and general aerospace and defence interconnect where a rugged threaded-coupling connector is specified. They are common in MRO workshops rebuilding legacy harnesses and in UAV ground-equipment integration.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Circular / Rectangular Connectors.
