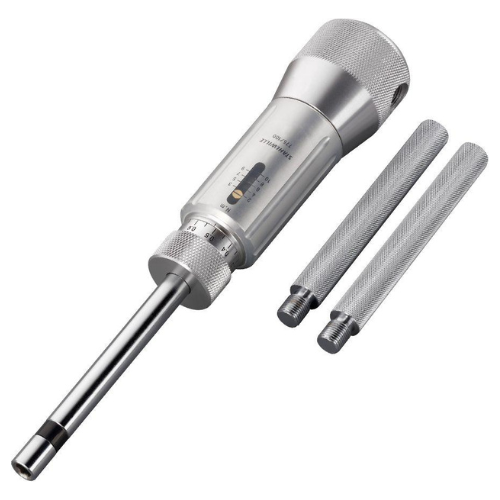

Stahlwille 775/100 TORSIOMAX Torque Screwdriver, 400-1000 cNm, 6.3 mm Mount — BOLTON SKU 52073.
About the Stahlwille 775/100 TORSIOMAX Torque Scre Hand Tool
The Stahlwille 775/100 TORSIOMAX hand tool is a torque screwdriver covering 400 to 1000 cNm — that is, 4 to 10 Nm — with a 6.3 mm (1/4 in) tool mount for bits and insert tools. A torque screwdriver is used where a small threaded fastener carries a specified tightening value: the tool is set to the required figure and releases, or signals, once that value is reached, so the joint is neither left slack nor pulled past the point where the thread or the component beneath it starts to suffer. The 6.3 mm mount is the common hexagon bit interface, which means one tool can drive slotted, cross-recess, hexagon-socket and Torx bits as the fastener requires. Setting accuracy, the tolerance class the tool is manufactured and tested to, the setting and locking method, overall length and available calibration certification are confirmed against STAHLWILLE’s current specification for 775/100 at quotation.
Key specifications
| Brand | STAHLWILLE |
|---|---|
| Model | 775/100 TORSIOMAX |
| Tool type | Torque screwdriver |
| Torque range | 400-1000 cNm (4-10 Nm) |
| Tool mount | 6.3 mm (1/4 in) |
| Supply category | Screwdrivers and hex keys |
Typical applications
A 4-10 Nm torque screwdriver is used on terminal and busbar screws, connector backshell and clamp hardware, small equipment mountings, instrument and panel fasteners, and anywhere a maintenance manual states a screw torque inside this band. Where the applied value is recorded against a build or inspection record, order the tool with a calibration certificate and enter it on the recall schedule your quality system operates.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Screwdrivers Hex Keys.
