Stahlwille 96500920 Torque Angle Wrench 714/20, 20-200 Nm — BOLTON SKU 52456.
About the Stahlwille 96500920 Torque Angle Wrench Hand Tool

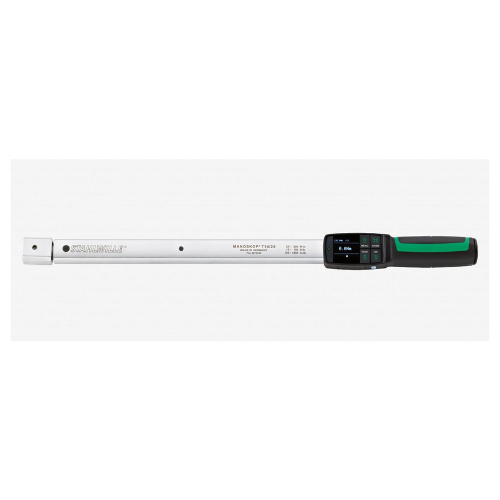

The Stahlwille 96500920 Torque hand tool is the MANOSKOP 714 in size 20, an electromechanical wrench that measures both applied torque and angle of rotation. Its scale range is 20-200 N·m, with torque resolution of 0.1 N·m above 60 N·m and angle resolution of 0.1°. Stated display deviation is ±2% and ±1 digit for torque, and ±1° and ±1 digit up to 100° for angle. The head is a 14 x 18 mm mount for insert tools, so ratchets, ring ends, open ends and adaptors can be swapped for the joint being worked. The tool measures 547 mm long, 28 mm wide and 23 mm high, and weighs 1361 g. It ships with certificates covering torque indication to DIN EN ISO 6789-2:2017 and angle of rotation based on VDI/VDE 2648-2, and is powered by Micro (AAA) 1.5 V cells.
Key specifications
| Order number | 96500920 |
|---|---|
| Model | MANOSKOP 714, size 20 |
| Measuring range | 20-200 N·m |
| Insert-tool mount | 14 x 18 mm |
| Torque display deviation | ±2%, ±1 digit |
| Angle display deviation | ±1°, ±1 digit to 100° |
| Torque resolution | 0.1 N·m (above 60 N·m) |
| Length / weight | 547 mm / 1361 g |
| Standards | DIN EN ISO 6789-2:2017 (torque); VDI/VDE 2648-2 (angle) |
| Power | Micro (AAA) 1.5 V batteries |
Typical applications
The 20-200 N·m band covers the mid-range structural and drivetrain fasteners typically found on vehicle assemblies, ground support equipment and machinery frames. Because the wrench records angle as well as torque, it fits torque-plus-angle tightening specifications where a stated torque is followed by a defined further rotation. The 14 x 18 mm insert mount lets one wrench body serve several joint geometries, which is useful for workshops standardising a documented tightening process across mixed equipment.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
