Description

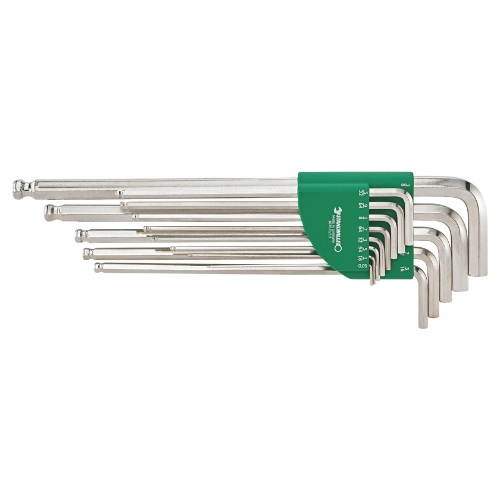

Stahlwille 10767A/13 Hexagon Key Wrench Set (96435700) — BOLTON SKU 52614.
About the Stahlwille 10767A/13 Hexagon Key Wrench Hand Tool
Ordered under Stahlwille number 96435700, this is the 10767A/13 set: thirteen L-shaped hexagon keys for inch-series internal hexagon socket screws, spanning 0.050 in through 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4 and 5/16 to 3/8 in. The long arm of each key carries a ball end, which lets the key be entered at an angle to the screw axis — Stahlwille quotes a turning angle of up to 25° either side of centre — so a screw set behind an obstruction can still be driven without a straight-on approach. The ball end also holds the screw on the key when starting a fastener into a blind location. Keys are chrome alloy steel with a nickel-plated finish.
Key specifications
| Brand | Stahlwille |
|---|---|
| Model | 10767A/13 |
| Order number | 96435700 |
| Number of pieces | 13 |
| Size system | Inch (AF) internal hexagon |
| Sizes | 0.050, 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8 in |
| Long arm end | Ball end, up to 25° turning angle each side |
| Material | Chrome alloy steel |
| Finish | Nickel plated |
Typical applications
An inch-size hex key set is specified where the equipment being maintained is built to imperial fastener standards — a great deal of aerospace, test and instrumentation hardware is. The 0.050 in size at the small end covers set screws on shaft collars, knobs and encoder couplings, while 3/8 in at the top of the range reaches into structural socket-head cap screws. The ball end is the working feature that separates the Stahlwille 10767A/13 Hexagon hand tool set from a plain key set: it is what makes the set useful on screws recessed in a housing or approached past a cable loom, rather than only on open, square-on fasteners.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Spanners Sockets.
