Stahlwille Combination Spanner 14mm, 40081414 — BOLTON SKU 52674.
About the Stahlwille Combination Spanner 14mm, 400 Hand Tool

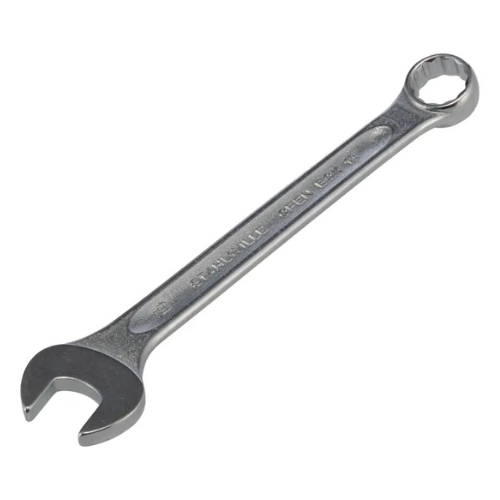

This Stahlwille Combination Spanner hand tool is article 40081414, the 14 mm size, with a 14 mm open jaw, a 14 mm ring and a 165 mm overall length. Spanners in the Stahlwille OPEN-BOX 13 series are drop-forged from chrome alloy steel, hardened and oil-quenched, chrome-plated, and built with a 15° jaw angle, a ring end cranked 15° carrying the bi-hex AS-Drive profile, a reinforced jaw-to-shank transition and a double-T shank section. It sits in the middle of the range, where handle length is long enough to seat a joint properly but short enough that the spanner still reaches into an assembly rather than needing clear space around it. Material is chrome alloy steel with a chrome-plated finish, and the spanner is made to DIN 3113. Ordering is by the manufacturer article number rather than by size alone, since the same 14 mm width is offered in other Stahlwille patterns with different lengths and ring geometry.
Key specifications
| Manufacturer | STAHLWILLE |
|---|---|
| Article number | 40081414 |
| Series | OPEN-BOX 13 |
| Width across flats | 14 mm (both ends) |
| Overall length | 165 mm |
| Ring profile | Bi-hex with AS-Drive |
| Jaw angle | 15° |
| Ring end offset | 15° |
| Material and finish | Chrome alloy steel, chrome-plated |
| Standards | DIN 3113 |
Typical applications
14 mm hardware is met on mid-size mounting brackets, hydraulic and pneumatic fitting locknuts, pump and gearbox covers and general plant assemblies. At 165 mm the spanner can be swung inside a machine frame without needing the fastener to be on an open face. The cranked ring end lies flat over hardware that stands proud of a plate, so the handle clears the surface instead of pressing against it.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
