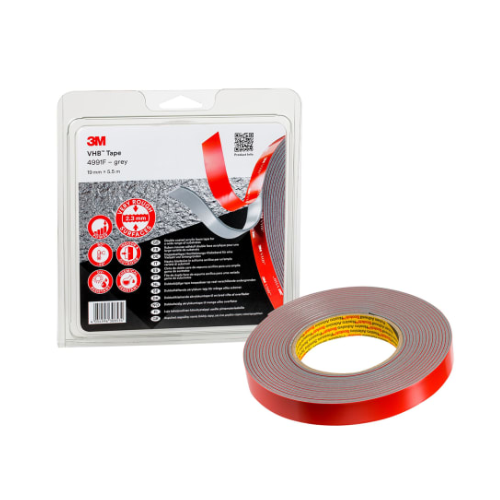

3M VHB 4991F Grey Foam Tape, 19 mm x 5.5 m, 2.3 mm Thick — BOLTON SKU 54222.
About the 3M VHB 4991F Grey Foam Tape
VHB foam tapes bond through an acrylic foam core coated with pressure-sensitive adhesive on both faces, forming a continuous joint in place of point fixings. What sets this 3M VHB 4991F industrial adhesive apart within the range is its thickness: at 2.3 mm the core is substantially thicker than the thin grades used for flush laminating, so the tape can take up gaps and surface irregularity between two parts that would otherwise need a shim or a bead of sealant. The extra thickness also gives the joint more room to absorb differential movement between the bonded parts. It is supplied grey, 19 mm wide, on a 5.5 m roll — a short roll length that reflects how much material a thick foam tape occupies compared with a thin one. Quote the 4991F reference in full when reordering, as thickness alone does not identify the grade.
Key specifications
| Brand | 3M |
|---|---|
| Product designation | VHB 4991F |
| Construction | Double-sided acrylic foam tape on a release liner |
| Colour | Grey |
| Thickness | 2.3 mm |
| Width | 19 mm |
| Roll length | 5.5 m |
Typical applications
A 2.3 mm foam thickness is chosen where the mating faces are not flat or parallel — cast, welded, extruded or moulded parts — and the tape must fill an uneven gap while still bonding. It also suits joints between dissimilar materials that expand at different rates, where a thicker core has more capacity to accommodate the movement. The 19 mm width and short 5.5 m roll fit gap-filling repairs and small batch assembly rather than continuous production runs.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
