HOOK-UP DL WALL STRND 22AWG WHT — BOLTON SKU 55391.
About the 44A0111-22-9-9CS3144-L193 Technical Component

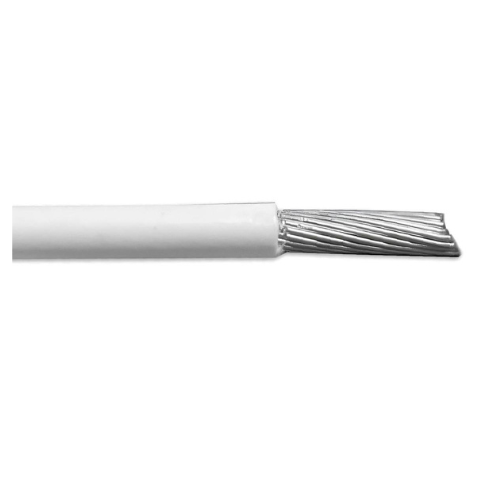

This item is TE Connectivity (Raychem) Spec 44 hook-up wire, part number 44A0111-22-9-9CS3144-L193 — a dual-wall, stranded, 22 AWG wire in white. The base 44A0111-22-9 construction uses a 19-strand tin-plated copper conductor with the Raychem 44 series dual-wall, radiation-crosslinked insulation system, rated 600 V with an operating temperature range of -65 °C to +150 °C. Spec 44 wire is a long-established airborne and military hook-up wire family noted for its thin, light insulation with high flame retardance, resistance to cold flow and mechanical ease of handling in high-density harnessing. The additional characters in the full part number designate a TE supply/put-up variant of the same base wire; the electrical construction is that of the 44A0111-22-9 base part described above.
Key specifications
| Type | Hook-up wire, dual-wall insulation (Raychem Spec 44 / 44A series) |
|---|---|
| Size | 22 AWG, stranded (19-strand) |
| Conductor | Tin-plated copper |
| Insulation | Dual-wall, radiation-crosslinked (44 series system) |
| Voltage rating | 600 V |
| Operating temperature | -65 °C to +150 °C |
| Colour | White (colour code 9) |
Typical applications
Spec 44 hook-up wire is used in aerospace, defence and UAV electrical systems for point-to-point wiring and harness fabrication where low weight and small diameter are critical. It is also common in MRO rewiring and repair of military-standard equipment.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
