Description
Battery, 12 V 60 Ah, Power Safe SBS — BOLTON SKU 56150.
About the SBS-60 Battery

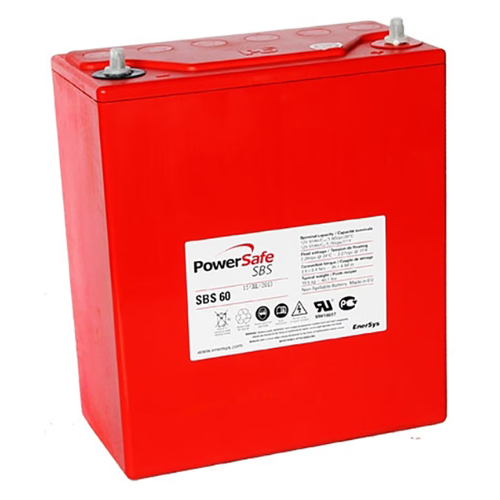

The EnerSys PowerSafe SBS 60 is a 12 V, six-cell valve-regulated lead-acid (VRLA) monobloc from the PowerSafe SBS standby range. The 60 in the model name is a range designator rather than an amp-hour figure: EnerSys rates the SBS 60 at 51 Ah at the 8-hour rate to 1.75 V per cell, and 51 Ah at the 10-hour rate to 1.80 V per cell. Construction uses thin plate pure lead (TPPL) positive grids with absorbent glass mat separators holding the electrolyte, and a flame-retardant UL94 V-0 container and cover. EnerSys quotes greater than ten years’ life expectancy in float service at 25 °C, an operating range of −40 °C to 50 °C with 20–30 °C recommended, and compliance with Telcordia SR-4228 NEBS criteria. The block measures 220 × 121 × 261 mm, weighs 18.5 kg and uses M6 male terminals.
Key specifications
| Type | Valve-regulated lead-acid (VRLA) standby battery |
|---|---|
| Series / model | EnerSys PowerSafe SBS — SBS 60 |
| Nominal voltage | 12 V (6 cells) |
| Capacity | 51 Ah at the 8 hr rate to 1.75 V/cell; 51 Ah at the 10 hr rate to 1.80 V/cell |
| Technology | Thin plate pure lead (TPPL) with AGM separators |
| Dimensions (L × W × H) | 220 × 121 × 261 mm (8.66 × 4.76 × 10.3 in) |
| Typical weight | 18.5 kg (40.8 lb) |
| Terminals | M6 male |
| Short-circuit current | 2,618 A |
| Internal resistance | 4.40 mΩ (reference value) |
| Operating temperature | −40 °C to 50 °C (20–30 °C recommended) |
| Design life | Greater than 10 years float service at 25 °C |
| Container | Flame-retardant UL94 V-0 material |
Typical applications
PowerSafe SBS blocks provide standby power for telecommunications and cable network sites, control and signalling systems, emergency lighting, power generation and offshore installations. The TPPL construction gives high-rate discharge capability and heat tolerance in a compact footprint, which suits shelter, cabinet and vehicle-mounted equipment on defence and infrastructure programmes. Approval as non-hazardous cargo for ground, sea and air transport also makes the range practical for deployable systems.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
