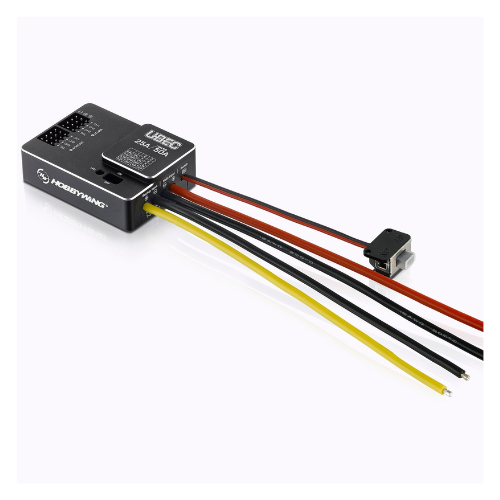

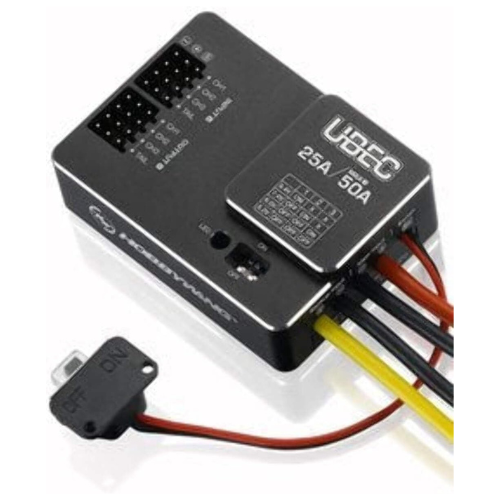

Hobbywing HWI30606000 High Voltage 25A UBEC — BOLTON SKU 57282.
About the Hobbywing HWI30606000 High Voltage 25A U Technical
Catalogued as the Hobbywing HWI30606000 High technical component, this part is a high-voltage UBEC rated at 25 A. A BEC, or battery eliminator circuit, supplies regulated low-voltage power to a receiver, servos and avionics directly from the main propulsion battery, removing the need for a separate battery to feed those loads. UBEC is the term used in this market for the switching-regulator version: instead of dropping the surplus voltage across a linear regulator and turning it into heat, a switch-mode converter steps the voltage down at far higher efficiency, which is what makes a 25 A rating practical in a small package. The high-voltage designation indicates an input range extended above that of a standard BEC, so the unit can be fed from a higher-cell-count pack. Selectable output voltages, the exact input range, connector fitment, cooling requirements and physical dimensions should be confirmed against the Hobbywing datasheet at enquiry.
Key specifications
| Attribute | Value |
|---|---|
| Brand | Hobbywing |
| Part number | HWI30606000 |
| Product type | UBEC (switching battery eliminator circuit) |
| Rated output current | 25 A |
| Input class | High voltage |
| BOLTON SKU | 57282 |
Typical applications
A 25 A UBEC is sized for airframes and ground platforms whose servo and payload loads exceed what an ESC-integrated BEC can supply: large multirotors, heavy-lift and fixed-wing UAS with high-torque control surfaces, gimbals and camera payloads, and robotic platforms drawing from a single high-voltage pack. Running the servo bus from a dedicated converter also isolates those loads from the ESC, so a stalled or surging actuator is less likely to disturb the flight controller supply.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
