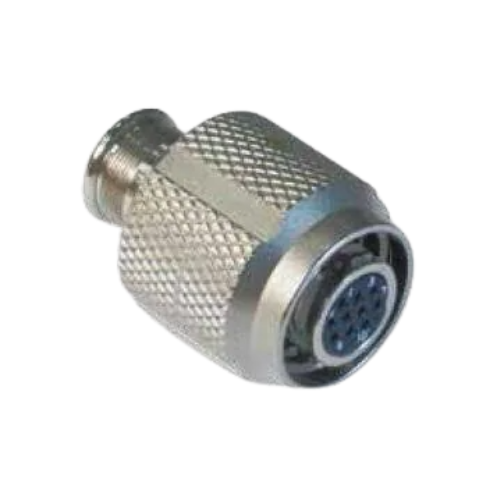

805-001-16M15-37SA Connector Plug, 37-Position, Crimp — BOLTON SKU 57523.
About the 805-001-16M15-37SA Connector Plug, 37-Po Connector
The 805-001-16M15-37SA Plug 37-Position connector is a micro-miniature circular connector plug carrying 37 contact positions. The contacts are female sockets, gold plated, and terminated by crimping rather than soldering, so conductors are prepared and crimped into removable contacts which are then inserted into the insert cavities. Connectors of this pattern are used where a high circuit count has to pass through a small shell diameter, and the crimp system means individual circuits can be extracted and replaced with a contact removal tool without disturbing the rest of the harness. Because contact plating, insert arrangement and shell keying are all encoded in the full part number, the complete designation should be quoted when ordering mating halves, backshells or replacement contacts so that polarisation and contact size are matched.
Key specifications
| Part number | 805-001-16M15-37SA |
|---|---|
| Connector style | Circular connector plug |
| Contact positions | 37 |
| Contact gender | Female (sockets) |
| Termination | Crimp |
| Contact plating | Gold |
Typical applications
A 37-way crimp plug in a micro-miniature shell is normally specified for dense signal breakouts — instrumentation looms, avionics and sensor interfaces, and equipment bulkhead penetrations where mass and panel area are limited but circuit count is not. The removable crimp contacts suit assemblies that are expected to be repaired in service rather than replaced whole. Mating half, backshell and contact part numbers should be confirmed against the same series before harness build.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
