M83519/2-13 Solder Sleeve, Wire-to-Wire, 0.17-0.20 in — BOLTON SKU 57877.
About the M83519/2-13 Solder Sleeve, Wire-to-Wire, Soldering

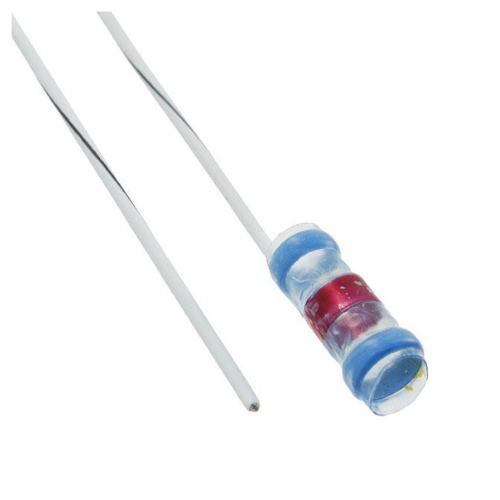

The M83519/2-13 Solder Sleeve soldering equipment reference identifies a wire-to-wire solder sleeve splice built to the M83519 (MIL-DTL-83519) specification series, slash sheet 2, in the dash-13 size. A solder sleeve is a heat-shrinkable sleeve carrying a pre-placed solder ring at its centre and thermoplastic sealing inserts at each end. The conductors to be joined are entered from opposite ends and overlapped beneath the solder ring; applying controlled heat melts the solder to form the electrical joint, recovers the sleeve and melts the sealing inserts, so one heating operation produces a connection that is soldered, insulated and environmentally sealed at the same time. No crimp tooling and no separate insulation step are involved. The dash-13 size accepts an assembled diameter of 0.17 to 0.20 in (approximately 4.3 to 5.1 mm), which is the dimension to check against conductor and insulation build when selecting a size.
Key specifications
| Designation | M83519/2-13 |
|---|---|
| Specification series | MIL-DTL-83519 |
| Slash sheet | /2 |
| Type | Wire-to-wire solder sleeve splice |
| Accommodated diameter range | 0.17 – 0.20 in (approx. 4.3 – 5.1 mm) |
| Installation | Heat-activated, single operation |
Typical applications
Solder sleeves to this series are used for in-line splices in airborne, vehicle and shipboard wiring where the joint has to be sealed against moisture and fluids, and where a crimped splice would be harder to inspect after installation. The dash-13 size covers the mid-range assembled diameters found in signal and light power harnesses. Typical work includes harness repair and modification, breakout and pigtail joints, and rework of looms during scheduled maintenance.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
