GEPRC GEP-F405-HD V2 Flight Controller — BOLTON SKU 58195.
About the GEPRC GEP-F405-HD V2 Flight Controller

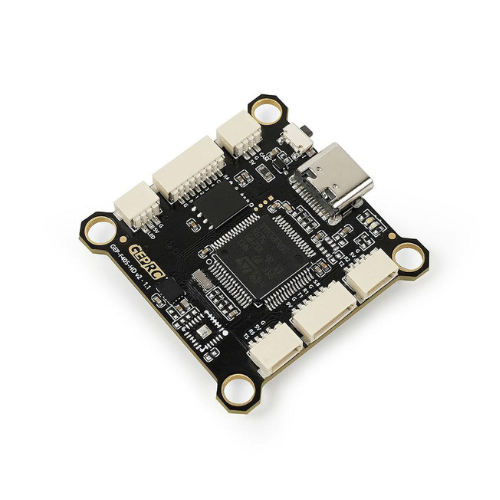

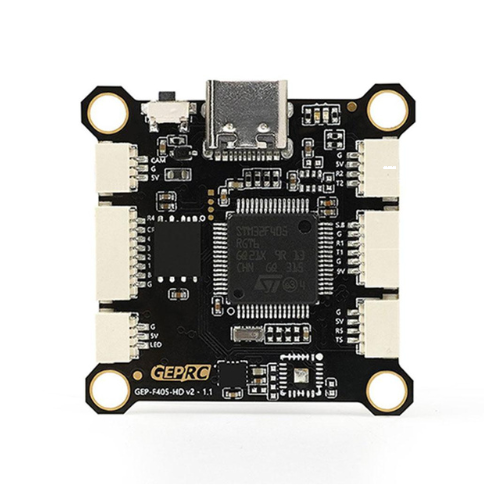

The GEPRC GEP-F405-HD V2 technical component is a flight controller intended for 3 to 5 inch FPV airframes, and in particular for HD builds that carry a DJI Air Unit or Vista video system. Processing is handled by an STM32F405 microcontroller, the F4-class part that most current firmware builds still target, paired with an ICM42688-P gyroscope for attitude sensing. Six UARTs are provided, which is what allows an HD video unit, a receiver, GPS, telemetry and a further peripheral to be connected without resorting to soft-serial or shared ports. Dual BEC outputs supply regulated power to the video system and to the receiver and peripherals separately, keeping a high-draw video transmitter off the same rail as the radio link. The HD designation reflects the connector and power provisioning intended for digital video rather than an analogue chain.
Key specifications
| Brand | GEPRC |
|---|---|
| Model | GEP-F405-HD V2 |
| Microcontroller | STM32F405 |
| Gyro / IMU | ICM42688-P |
| UARTs | 6 |
| Power regulation | Dual BEC outputs |
| Intended airframes | 3-5 inch FPV |
| HD video systems | DJI Air Unit / Vista builds |
Typical applications

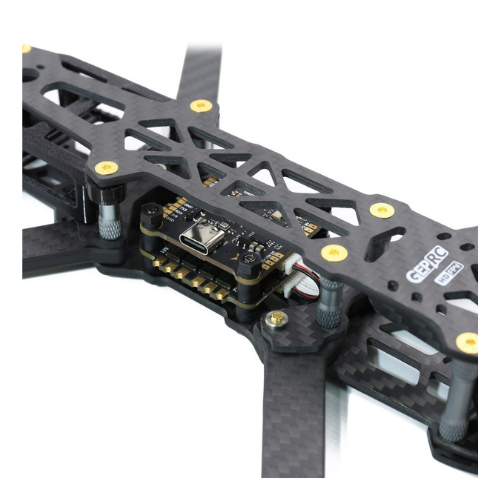

This board is specified for small digital-video multirotors where the airframe is too tight for a full stack of separate regulator and interface boards. The six UARTs make it a reasonable choice for builds that add GPS and telemetry to an HD video link rather than flying line-of-sight only. In a professional setting the same class of controller appears in training airframes, inspection and survey multirotors, and development platforms where a familiar F4 target and a common gyro simplify firmware support.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Flight Control Electronics.
