Description
Overview

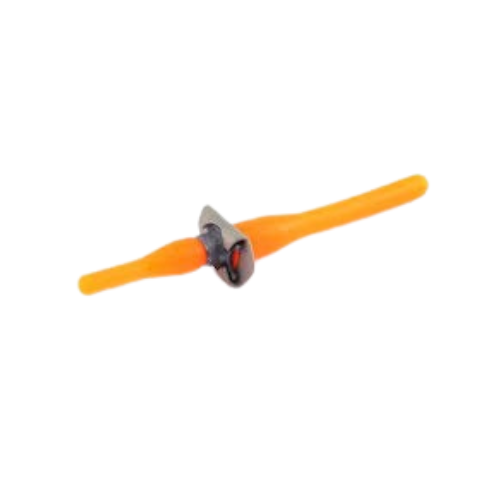

CB6014CR3M1P is the MJ3 x 0.5 metric size of the Click Bond CB6014 miniature fold-over nutplate. Instead of being riveted, the nutplate is bonded to the structure with a structural adhesive, so no attachment rivet holes are drilled; the fold-over baseplate gives a reduced footprint for tight spaces and low-frequency-access locations where a non-replaceable nut element is acceptable. Each nutplate ships with a disposable elastic installation fixture that centres it on the fastener hole, protects the threads from adhesive and clamps it while the adhesive cures. In the Click Bond part-number scheme CR denotes the stainless (CRES) baseplate, 3M the MJ3 x 0.5 thread, 1 the thread-relief code and P the primed bonding surface.
Technical data
- Product type: Miniature fold-over rivetless nutplate, two-lug
- Thread size: MJ3 x 0.5
- Baseplate material: A-286 stainless steel (CRES, passivated)
- Nut element: A-286 stainless steel, dry film lubricated
- Bonding surface: Epoxy primer (P)
- Baseplate style: Fold-over, two lug
- Thread relief code: 1
- Installation: Adhesive bonded; integral elastic installation fixture supplied
Applications
The manufacturer lists the CB6014 for panels, fairings, interiors, decking and floorboards, equipment and systems attachment, fuel and fluid tanks, pressurised vessels and structural components across air, sea, land and industrial platforms.
Sourcing from BOLTON
BOLTON Technical Equipment Supplies sources and supplies CB6014CR3M1P against request for quotation for defence, aerospace, UAV/UAS, MRO and industrial programmes across the UAE, Saudi Arabia and Australia. Pricing, lead time and documentation requirements (for example certificate of conformity, manufacturer datasheets or test reports where applicable) are confirmed against your RFQ. Add this item to your RFQ basket to request a quotation.
