G-1075 6 PIN WAY SEALED GRAY MALE AND FEMALE AUTO WATERPROOF ELECTRICAL WIRE CONNECTOR PLUG 22-16AWG — BOLTON SKU 55370.
About the G-1075 6 PIN WAY SEALED GRAY

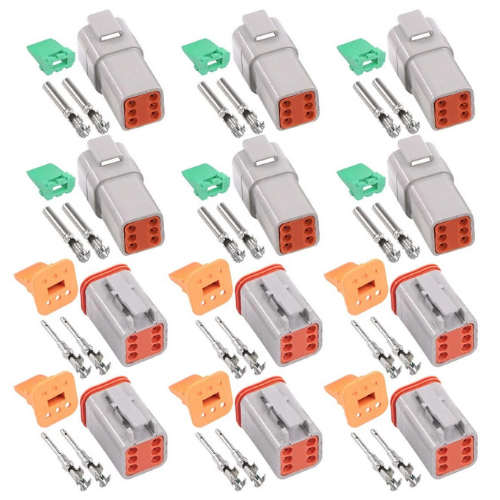

Glarks reference G-1075 covers a 6-position sealed wire-to-wire connector set of the automotive waterproof style, supplied in grey with mating male and female housings. Connectors of this family use elastomeric seals around each wire entry and at the housing interface so that mated pairs resist water, dust and washdown exposure — the reason this pattern is ubiquitous in vehicle, marine and outdoor equipment wiring. The housings accept crimp contacts for conductor sizes in the 22–16 AWG range, covering common signal and light power circuits, and latch positively so connections survive vibration while remaining separable for maintenance. As a commercial connector set, formal ingress-protection ratings, current ratings and temperature limits are not published to a governing standard and should be confirmed against the supplier’s data at quotation stage.
Key specifications
| Type | Sealed wire-to-wire connector set |
|---|---|
| Positions | 6 |
| Configuration | Male and female mating housings |
| Sealing | Waterproof, automotive style |
| Wire range | 22–16 AWG |
| Colour | Grey |
| Reference | Glarks G-1075 |
Typical applications
Sealed multiway connectors of this style are used for exterior and engine-bay wiring on vehicles and ground-support equipment, outdoor sensor and lighting runs, and field-serviceable harness breaks in UAV ground equipment and industrial machinery.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
