GHG 516 4506 R0001 16A, 5P Wall Socket — BOLTON SKU 70986.

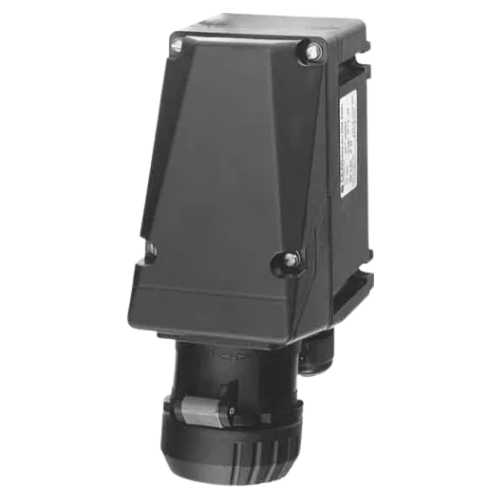

About the GHG5164506R0001 Wall Socket, 16A 5-Pole
The GHG5164506R0001 5-pole wall socket is the three-phase fixed outlet in the GHG 16 A range, rated 346 to 415 V across five poles and released for Zone 2 and Zone 22 atmospheres, with the contact position given as 6 h. It is described in the source data as a wall socket, so it is mounted to a surface rather than through a panel face. Its distinguishing detail against the other sockets in this family is the cable entry arrangement: one M25 cable gland is supplied together with one M25 threaded stopping plug, so the installer can take the supply in from either entry and seal the unused one without sourcing a separate blank. That matters in hazardous-area work, where an unsealed entry defeats the protection concept. It belongs to the Eaton Crouse-Hinds CEAG Zone 2 plug and receptacle range.
Key specifications
| Manufacturer part number | GHG 516 4506 R0001 |
|---|---|
| Device type | Ex wall socket outlet |
| Current rating | 16 A |
| Poles | 5-pole |
| Voltage | 346 – 415 V |
| Contact position | 6 h |
| Hazardous area | Zone 2 / Zone 22 |
| Cable entry | 1 x M25 cable gland |
| Supplied with | 1 x M25 threaded stopping plug |
Typical applications
A surface-mounted three-phase Ex socket at this rating supplies fixed and relocatable three-phase equipment in classified areas, including pumps, fans, compressors and temporary power for maintenance plant. The supplied M25 gland and stopping plug make it straightforward to install on a wall or steel structure with the correct entry direction and a sealed spare entry.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
