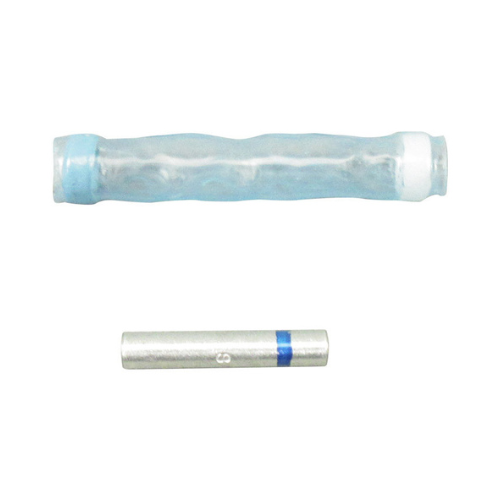

Crimp Splice, Environmentally Sealed, Blue, 20 to 16 AWG — BOLTON SKU 53903.
About the Crimp Splice Environmentally Sealed Blue 20
This is an environmentally sealed permanent crimp splice for joining two conductors in line, colour-coded blue and sized for wire from 20 to 16 AWG, catalogued as m81824/-1-2 splice crimp environmentally sealed. An environmentally sealed splice differs from a plain butt splice in that the insulation sleeve is designed to seal onto the wire insulation once the crimp is made and the sleeve is heated, closing the joint against moisture and contaminants rather than simply covering it. The colour code identifies the wire range the barrel is sized for, so the correct splice can be selected by eye at the bench; blue corresponds to the 20 to 16 AWG group in this family. Termination is by crimping with the matching tool and die, producing a permanent joint that is not intended to be taken apart. Qualification and inspection requirements are confirmed against the manufacturer’s documentation at quotation.
Key specifications
| Reference | M81824/-1-2 (as held on this line) |
|---|---|
| Product type | Permanent in-line crimp splice, environmentally sealed |
| Wire size range | 20 to 16 AWG |
| Colour code | Blue |
| Termination | Crimp — permanent joint |
Typical applications
Sealed splices in this size are used to repair and extend signal and low-current power conductors in harnesses exposed to moisture, spray or washdown, and to join wires where fitting a connector would add unwanted bulk. The 20 to 16 AWG range covers the majority of instrumentation and control conductors. Because the joint is permanent, splices of this type are normally placed at defined repair points that are recorded in the wiring documentation.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
