Description

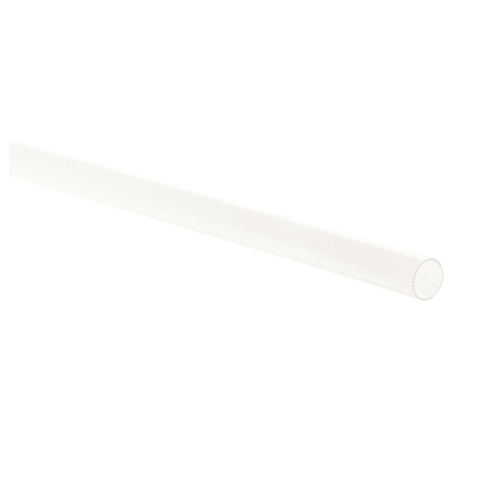

M23053/5-210-C 1″ Tubing, Heat-Shrinkable, Thin wall, Fluid Resistant, 1″, 125 °C,Clear — BOLTON SKU 58610.
About the M23053/5-210-C Heat Shrink Tubing
The M23053/5-210-C is heat-shrinkable insulation sleeving procured against SAE-AMS-DTL-23053/5 (formerly MIL-DTL-23053/5), the specification sheet covering flexible, crosslinked polyolefin tubing with a 2:1 shrink ratio. In the part number, the -210 dash size corresponds to the 1-inch expanded diameter stated in the item designation, and the C suffix identifies the clear colourway; under the /5 sheet, clear tubing is supplied as Class 2. The listing further identifies the tubing as thin wall and fluid resistant, with a 125 °C temperature rating. Crosslinked polyolefin of this class recovers on heating to grip the substrate, providing electrical insulation, mechanical protection and identification over wire joints, breakouts and components, and the clear grade allows printed markings or splices to remain visible after recovery.
Key specifications
| Type | Heat-shrinkable insulation tubing |
|---|---|
| Governing specification | SAE-AMS-DTL-23053/5 (formerly MIL-DTL-23053/5) |
| Material | Flexible, crosslinked polyolefin |
| Shrink ratio | 2:1 |
| Expanded size | 1 in (dash size -210) |
| Colour / class | Clear (Class 2 under /5) |
| Wall | Thin wall, fluid resistant (per listing) |
| Temperature rating | 125 °C (per listing) |
Typical applications
M23053/5 tubing is used for harness jacketing, splice insulation, strain relief and identification in aerospace, defence and UAV wiring. It is a staple consumable in harness shops and electrical MRO bays working to military wiring practices.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Heat-Shrink & Sleeving.
