Description

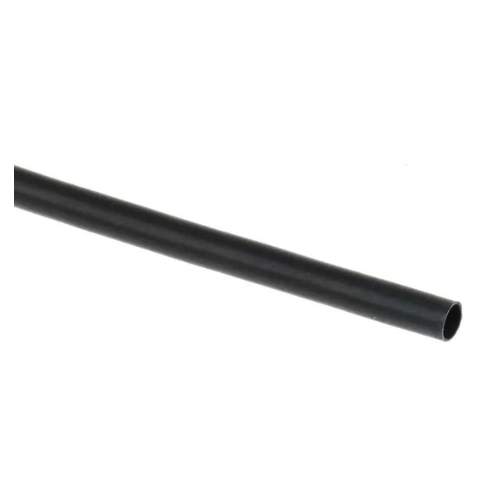

RNF-100-1/4-0 Heat Shrink Tubing and Sleeves 1/4″, Black — BOLTON SKU 62046.
About the RNF-100-1/4-0 Heat Shrink Tubing
RNF-100 is TE Connectivity Raychem’s flexible, flame-retarded polyolefin heat-shrinkable tubing with a nominal 2:1 shrink ratio, supplied as a single-wall product. It is rated for continuous operation from -55 to +135 degrees Celsius; recovery begins at a minimum shrink temperature of 95 degrees Celsius and full recovery is reached at 121 degrees Celsius. The material is chosen for mechanical protection — abrasion, cutting and strain relief — together with thermal stability and fluid resistance, and its flame-retardant formulation is why it is specified so widely for industrial and military harnesses. In this part number the 1/4 is the nominal as-supplied inside diameter in inches, recovering to approximately half that dimension at the 2:1 ratio, and the trailing 0 is the colour code for black.
Key specifications
| Product family | Raychem RNF-100 |
|---|---|
| Material | Flame-retarded polyolefin |
| Wall | Single wall |
| Shrink ratio | 2:1 nominal |
| Supplied size | 1/4 inch nominal inside diameter |
| Colour | Black (code 0) |
| Minimum shrink temperature | 95 degrees Celsius |
| Full recovery temperature | 121 degrees Celsius |
| Operating temperature range | -55 to +135 degrees Celsius |
| Brand | TE Connectivity (Raychem) |
Typical applications
General-purpose heat-shrink of this grade is used for insulating and strain-relieving wire terminations and splices, jacketing wire bundles and light harnesses, colour coding and identification, and protecting components against abrasion. It is a routine consumable in avionics and UAV harness build, electrical panel work and MRO repair benches. Select the supplied size so that the recovered diameter grips the substrate without over-shrinking.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Heat-Shrink & Sleeving.
