Metcal STTC-136 Soldering Cartridge, Chisel 30 Degree, 2.5 mm Tip — BOLTON SKU 50786.
About the Metcal STTC-136 Soldering Cartridge, Chi Soldering

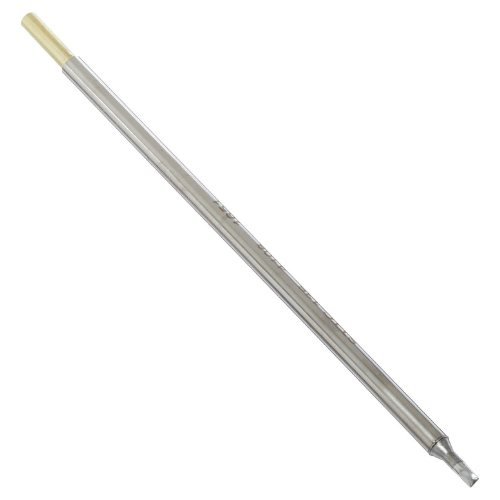

Metcal STTC-136 Cartridge soldering equipment is a soldering tip cartridge from Metcal’s STTC series, with a chisel geometry ground at 30° and a 2.5 mm tip face. In a cartridge system the heating element and the tip are a single replaceable unit rather than a tip slid onto a separate heater, so changing geometry means changing cartridge and the thermal path from element to tip stays short. The chisel form gives a flat working face rather than a point: contact area is larger, which is what carries heat into a joint quickly, and the 30° bend lets the operator present that face to the board while keeping the handpiece at a comfortable angle. At 2.5 mm this is a mid-size chisel — bigger than the fine tips used for dense fine-pitch work, smaller than the broad faces used for heavy ground planes. Series temperature code and handpiece compatibility should be confirmed against Metcal’s own cartridge selector before ordering.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer | Metcal |
| Part number | STTC-136 |
| Type | Soldering tip cartridge |
| Tip geometry | Chisel, 30° |
| Tip face size | 2.5 mm |
Typical applications
A 2.5 mm chisel is the general-purpose workhorse geometry for through-hole component leads, terminal blocks, connector pins, wire-to-pad and wire-to-terminal joints, and drag-soldering wider-pitch surface-mount packages. The 30° angle suits work where the board is flat on the bench and the operator needs the face square to the pad without rolling the wrist. It is a consumable: cartridges are replaced when the plating is worn or the tip no longer wets, and a spare of the most-used geometry is normally held alongside the station.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Soldering Irons Stations.
