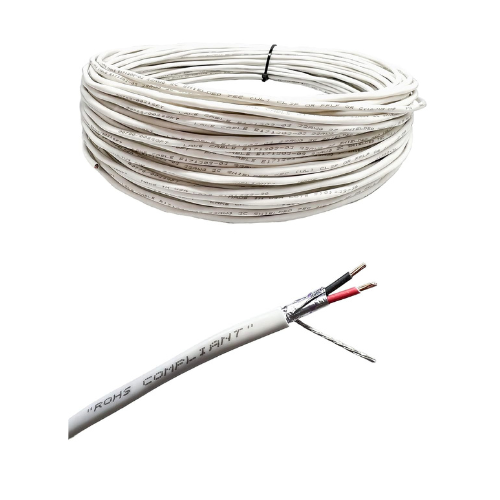

Custom Cable Connection 22101-100 22 AWG 2-Conductor Shielded Plenum Cable, CL3P, White, 1 — BOLTON SKU 50991.
About the Custom Cable Connection 22101-100 22 AWG
This Custom Cable Connection technical component, part number 22101-100, is a two-conductor shielded cable with 22 AWG conductors and a white jacket, listed CL3P. CL3P is a US National Electrical Code cable listing — Class 3 remote-control and signalling cable rated for installation in plenum spaces, the air-handling voids above ceilings and below floors — and that listing requires the cable to meet the tighter flame-spread and smoke-generation limits applied to plenum-rated constructions. The shield provides a screen around the conductor pair for runs near sources of electrical noise. A 22 AWG conductor size places this cable in the signal and low-current control class rather than in power distribution. Conductor stranding, shield type and coverage, drain-wire provision, jacket material, overall diameter, capacitance and the supplied put-up length are confirmed against the manufacturer’s current datasheet for 22101-100 at quotation.
Key specifications
| Brand | Custom Cable Connection |
|---|---|
| Part number | 22101-100 |
| Conductor size | 22 AWG |
| Number of conductors | 2 |
| Screening | Shielded |
| Cable listing | CL3P (Class 3, plenum rated) |
| Jacket colour | White |
Typical applications
Plenum-rated shielded pair cable is specified for low-voltage control and signalling runs that pass through building air-handling spaces, where a non-plenum jacket would not be permitted by the installation code. Typical uses at 22 AWG include instrumentation and sensor runs, audio and intercom links, access-control and alarm circuits and equipment interconnect. The screen is chosen where the run shares containment with power cabling or passes close to motors, drives or radio equipment.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
