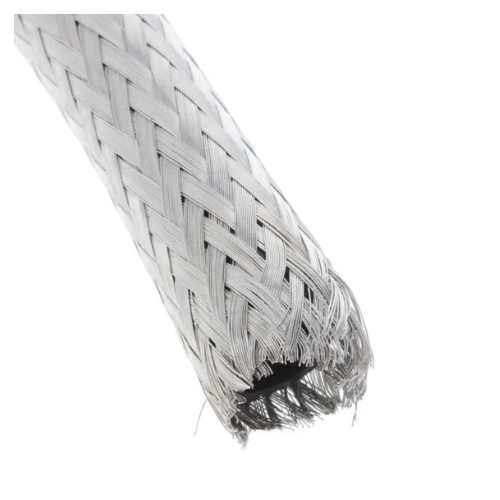

RAY-101-7.5 Tubular Ground Braid, 7.50mm (0.295 in) ID, 36 AWG — BOLTON SKU 53271.
About the RAY-101-7.5 Tubular Ground Braid, 7.50mm Technical
The RAY-101-7.5 Tubular Ground technical component is a tubular braided conductor with an inside diameter of 7.50 mm (0.295 in), constructed from 36 AWG strands. The tubular form is what makes it a harness part rather than a flat strap: it is slid over a cable or a bundle so that the braid surrounds the conductors along their length and can be terminated at one or both ends to structure or to a backshell. The 7.50 mm inside diameter is the sizing figure to work to, since the braid must pass over the bundle without being forced yet still close down onto it. The fine 36 AWG strand size gives the braid the flexibility to be routed and dressed without setting. Material, plating, coverage percentage, temperature rating and the supply length or format are not stated in the record and should be confirmed on the quotation.
Key specifications
| Part number | RAY-101-7.5 |
|---|---|
| Product type | Tubular ground braid |
| Inside diameter | 7.50 mm (0.295 in) |
| Strand size | 36 AWG |
| Form | Tubular braided sleeve |
Typical applications
Tubular braid of this diameter is applied over cable bundles to provide a grounding and shield-continuity path, and is terminated to airframe or enclosure structure at the points the electrical bonding scheme calls for. It is also used to make up bonding leads and shield pigtails where a flexible, fatigue-tolerant conductor is wanted. The 7.50 mm inside diameter suits bundles in that size class, so the bundle outside diameter should be measured before the braid size is fixed.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
