Description

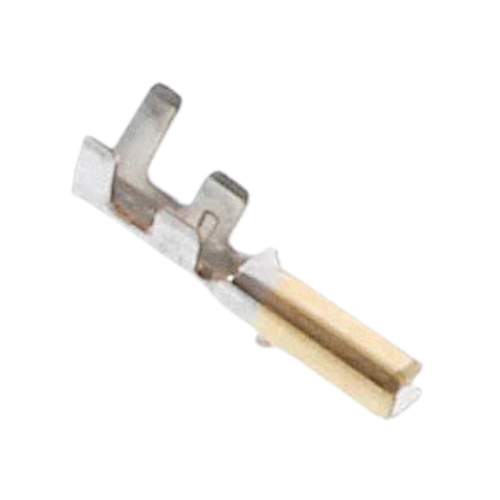

5023810010 Crimp Contact, Gold, 26-28 AWG, Stamped — BOLTON SKU 53816.
About the 5023810010 Crimp Contact, Gold, 26-28 AW Crimp
Two details on this part matter more than any other. The first is how it is made: stamped, meaning the contact is formed from flat strip in a progressive press tool rather than turned from bar on a machine. Stamped contacts are the standard construction for volume wire-to-board connector families and are supplied to suit automated or semi-automated crimping. The second is the plating. The 5023810010 Gold 26-28 crimp contact carries gold on the mating surface, which is specified where contact resistance must stay low and stable over time — gold does not build the oxide film that dulls a bare or tin surface, so it is the usual choice for low-current, low-voltage signal circuits in which even a small resistance change is a fault. The contact accepts 26 to 28 AWG conductors. It is a loose component: it must be crimped with the correct die and inserted into a matching housing, both of which should be confirmed on the RFQ.
Key specifications
| Part number | 5023810010 |
|---|---|
| Type | Crimp contact |
| Plating | Gold |
| Conductor range | 26-28 AWG |
| Construction | Stamped |
Typical applications
Gold-plated stamped crimp contacts populate the wire-end housings of fine-pitch signal connectors in instrumentation, control electronics, avionics sub-assemblies and communications hardware. The 26-28 AWG range and gold finish point squarely at low-current signal duty rather than power distribution — data, sensor and control lines where connection integrity is the requirement. Contacts are ordered by the reel or bag against the housing they populate, so quantity should be planned to include crimp setup and scrap.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
