Description

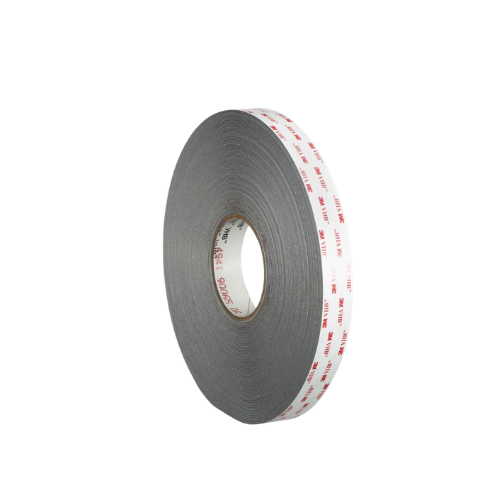

3M VHB Tape 4941, Grey, 19 mm x 33 m — BOLTON SKU 54144.
About the 3M VHB Tape 4941 Grey 19
3M’s VHB range is a family of double-sided acrylic foam tapes in which a viscoelastic foam core carries pressure-sensitive adhesive on both faces, so that load is spread across the whole bonded area rather than concentrated at fastener points. Supplied as a 3M VHB Tape industrial adhesive under the manufacturer designation 4941, this roll is grey, 19 mm wide and 33 m long, with a release liner removed at the point of application. The 19 mm width sets the bond-line width available to the designer, while the 33 m roll length determines how much continuous joint can be laid before a splice is needed. Designation 4941 is not interchangeable with other VHB references such as 5952, LSE-110 or the GPH series — core construction, adhesive chemistry and temperature behaviour differ between grades. Where a bond calculation or substrate compatibility check is required, request the current 3M technical datasheet for 4941 with your enquiry.
Key specifications
| Brand | 3M |
|---|---|
| Product designation | VHB 4941 |
| Construction | Double-sided acrylic foam tape on a release liner |
| Colour | Grey |
| Width | 19 mm |
| Roll length | 33 m |
Typical applications
A 19 mm bond line is a common width for panel, trim, stiffener and bracket bonding where a continuous adhesive joint is used in place of rivets or screws and the fixing must remain hidden. The 33 m roll suits repeat production or refit work where several assemblies are bonded from one roll. Grey is generally chosen where the bond line sits in a shadow gap or behind a joint and a neutral colour is preferred to black.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Technical Tapes.
