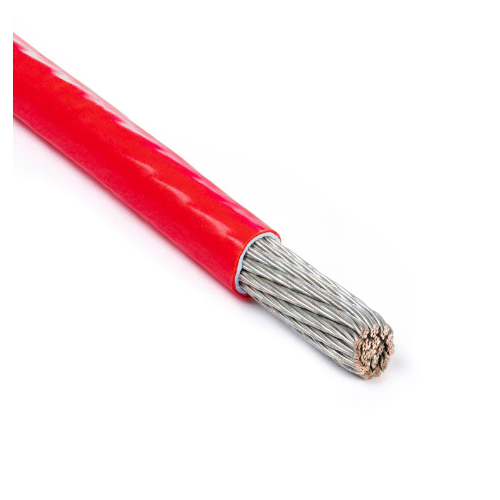

M22759/16-6-2 CONDUCTOR COPPER 6AWG RED — BOLTON SKU 55289.
About the M22759/16-6-2 Aerospace Wire
M22759/16, now issued as SAE AS22759/16, defines a single-conductor unshielded airframe wire with a stranded tin-plated copper conductor and extruded cross-linked ETFE insulation. The slash sheet is rated at 600 V and 150 degrees C, with a service range from -55 degrees C to +150 degrees C. ETFE is selected in aerospace harnessing because it gives a thin, dimensionally consistent wall with good mechanical toughness together with strong chemical and radiation resistance, which keeps harness bundle diameter and mass down without sacrificing cut-through performance. In this part number the first suffix identifies the conductor size, here 6 AWG, and the second identifies the insulation colour code; this item is red, which is consistent with colour code 2. Tin plating suits the 150 degrees C rating of this slash sheet.
Key specifications
| Specification | SAE AS22759/16 (formerly M22759/16) |
|---|---|
| Conductor | Stranded tin-plated copper |
| Insulation | Extruded cross-linked ETFE |
| Conductor size | 6 AWG |
| Voltage rating | 600 V |
| Temperature rating | 150 degrees C (-55 degrees C to +150 degrees C) |
| Colour | Red |
| Construction | Single conductor, unshielded |
Typical applications
AS22759/16 wire is a mainstream airframe and equipment hook-up wire used on aircraft, rotorcraft and UAV power and signal runs, in avionics and equipment racks, and in ground support and vehicle systems built to aerospace practice. At 6 AWG it is used for power feeders, battery and generator runs and heavy earth returns. Harness shops and MRO workshops buy it by the reel for loom manufacture and repair.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
