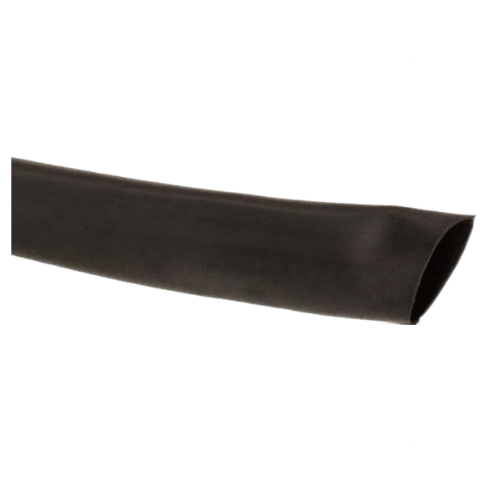

TE Connectivity DR-25-3/4-0-SP Heat-Shrink Tubing, 2:1, 3/4 in, Black, 30 m — BOLTON SKU 55387.
About the TE Connectivity DR-25-3/4-0-SP Heat-Shri Heat Shrink
DR-25-3/4-0-SP is a heat-shrinkable tubing from the TE Connectivity (Raychem) DR-25 family, in the 3/4 inch nominal size with a black finish, supplied as a 30 m length. Heat-shrink tubing is manufactured expanded and cross-linked so that applying heat recovers it toward its original, smaller extruded diameter; the TE Connectivity DR-25-3/4-0-SP heat shrink tubing carries a 2:1 shrink ratio, meaning the recovered internal diameter is nominally half the supplied expanded diameter. That ratio is what governs the fitting envelope in practice: the tubing must slide over the largest obstruction on the assembly — a backshell, a splice or a breakout — and still recover down tightly onto the smallest section it has to grip. In the 3/4 inch size the tubing is aimed at larger single cables and at bundled harness sections rather than individual wires. DR-25 is a named Raychem product family with its own material properties and qualification references; those should be taken from the current TE datasheet, which will accompany the quotation.
Key specifications
| Attribute | Value |
|---|---|
| Brand | TE Connectivity (Raychem) |
| Part number | DR-25-3/4-0-SP |
| Product family | DR-25 |
| Shrink ratio | 2:1 |
| Nominal size | 3/4 in (expanded internal diameter) |
| Colour | Black |
| Supplied length | 30 m |
Typical applications
Tubing at 3/4 inch is used over harness trunk sections, at breakout transitions where several branches leave a bundle, and over connector backshell-to-cable junctions that need a covered, abrasion-resistant transition. Cut lengths from a 30 m supply are used during harness build and during in-service repair, where a damaged outer covering is removed and replaced without disturbing the conductors beneath. The black finish is the standard choice for harnessing where a uniform, non-reflective external appearance is wanted.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
