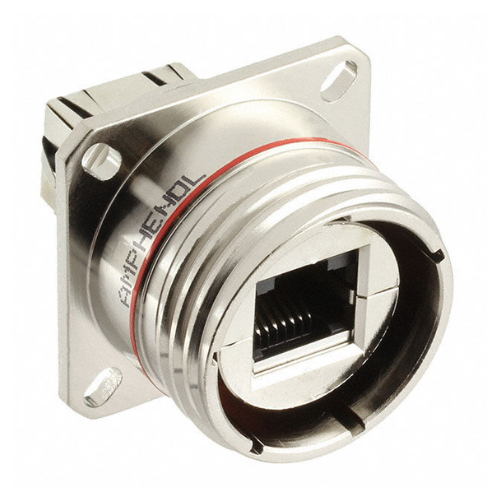

RJFTV62A1ZN Circular RJ45 Square-Flange Receptacle, Zinc-Nickel Aluminium Shell — BOLTON SKU 55402.
About the RJFTV62A1ZN Circular RJ45 Square-Flange Circular Con
RJFTV62A1ZN is a circular receptacle that presents a standard RJ45 modular interface inside a ruggedised metal shell, mounted through a panel on a square flange, with an aluminium shell finished in zinc-nickel plating. The purpose of a connector like the RJFTV62A1ZN RJ45 Square-Flange circular connector is to bring commercial Ethernet cabling out of a benign cabinet environment and onto equipment that is exposed: the familiar 8-position modular jack is retained so that standard patch cordage and standard network hardware still apply, while the circular shell adds mechanical protection, a threaded coupling to hold the mating half against vibration, and a metallic path for screen continuity that an unshielded plastic jack cannot provide. The square-flange format fixes the receptacle to the panel with four corner screws, which resists rotation and gives a more repeatable seal face than a single-hole jam-nut mount. Zinc-nickel plating is a corrosion-resistant, cadmium-free shell finish. Contact performance category, sealing rating and mating plug type should be confirmed from the manufacturer datasheet.
Key specifications
| Attribute | Value |
|---|---|
| Part number | RJFTV62A1ZN |
| Connector style | Circular receptacle |
| Interface | RJ45 (8-position modular jack) |
| Mounting | Square-flange panel mount |
| Shell material | Aluminium |
| Shell plating | Zinc-nickel |
Typical applications
Panel-mount ruggedised RJ45 receptacles are fitted on the external faces of equipment cabinets, vehicle and shelter interface panels, ground support units and outdoor enclosures, giving a maintainable network connection point that survives handling, weather and vibration. The square flange suits interface plates where several connectors are laid out on a grid and each must stay squarely aligned. A zinc-nickel finished aluminium shell is specified where a cadmium-free corrosion-resistant plating is required by the equipment finish schedule.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Data & Ethernet Connectors.
