DEA-9S-A197-F0 D-Sub Receptacle Housing, 9-Position, 20-28 AWG — BOLTON SKU 55586.
About the DEA-9S-A197-F0 D-Sub Receptacle Housing, Rectangular

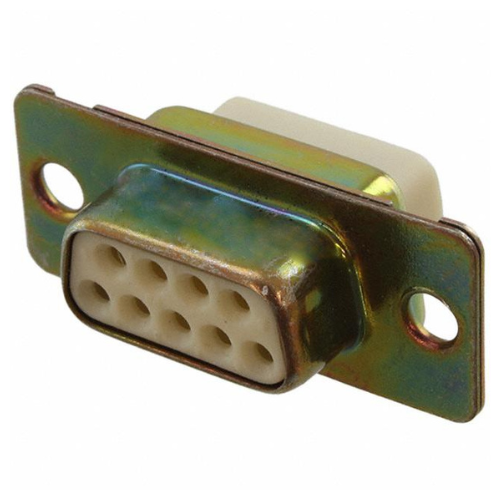

DEA-9S-A197-F0 is a nine-position D-subminiature housing in the receptacle configuration, meaning it carries socket contacts and mates with the corresponding nine-position pin assembly. D-subminiature connectors take their name from the D-shaped shell that surrounds the contact insert; the D profile is asymmetric, so the two halves can only be brought together one way round. Nine positions is the smallest of the common D-sub arrangements and uses the DE shell size. The housing accepts conductors from 20 AWG down to 28 AWG, so one connector can serve a harness mixing heavier and lighter wires within that range. Catalogued as a DEA-9S-A197-F0 D-Sub Receptacle rectangular connector, it belongs to the rectangular connector family rather than the circular one. As supplied this is the housing; contacts, backshell, jackscrews and hardware are separate line items, and plating and shell material should be confirmed against the manufacturer datasheet at enquiry.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer designation | DEA-9S-A197-F0 |
| Connector type | D-subminiature (rectangular) |
| Component | Receptacle housing |
| Contact positions | 9 (DE shell size) |
| Contact gender | Socket |
| Conductor range | 20 to 28 AWG |
| BOLTON SKU | 55586 |
Typical applications
Nine-way D-sub sockets are the fixed or cable-side half of serial data, encoder and low-level control links inside cabinets, test racks and ground equipment. Because this half carries sockets, it is the one normally specified where the mating face may be left exposed when the pair is separated, since recessed sockets are less prone to accidental shorting than exposed pins. The 20 to 28 AWG range covers signal wiring and light supply feeds on the same connector.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
