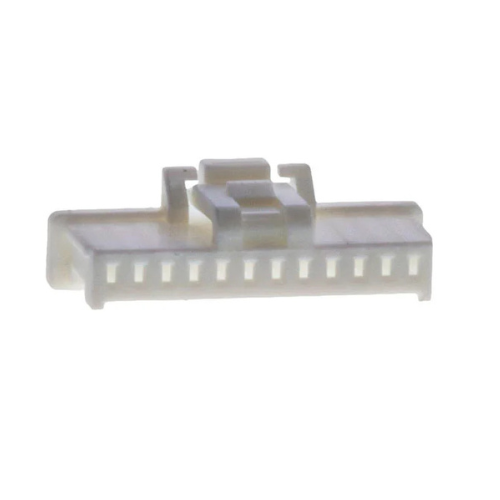

Molex 501330-1200 Receptacle Housing, 12-Position, 1.00 mm Pitch — BOLTON SKU 55596.
About the Molex 501330-1200 Receptacle Housing, 12 Connector
The Molex 501330-1200 Receptacle connector is a twelve-circuit crimp housing on a 1.00 mm contact pitch. Pitch is the centre-to-centre distance between adjacent contacts, and at 1.00 mm this housing sits in the fine-pitch group used where board area is limited and the cable carries signal rather than heavy current. Twelve positions are arranged along the housing, which is moulded with a cavity for each crimp terminal; terminals are crimped onto the wire first and then pushed into the cavities until they latch, so a circuit can be replaced individually. The housing is supplied on its own — the mating header, the crimp terminals and any application tooling carry their own part numbers and should be quoted alongside it. Current and voltage ratings, applicable wire range and operating temperature are series-level values; request the Molex datasheet with the enquiry so the intended conductor size is checked before order.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer | Molex |
| Part number | 501330-1200 |
| Component | Receptacle crimp housing |
| Circuits | 12 |
| Contact pitch | 1.00 mm |
| BOLTON SKU | 55596 |
Typical applications
Fine-pitch twelve-way housings are used for internal wire-to-board links inside compact electronic assemblies, where a ribbon of signal lines has to cross from a loom to a printed circuit board without taking up board edge. Twelve circuits is enough to carry a small bus together with its supply and return, which is why this size appears on sensor boards, display modules and control cards. Crimp construction keeps the assembly serviceable during integration and rework.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
