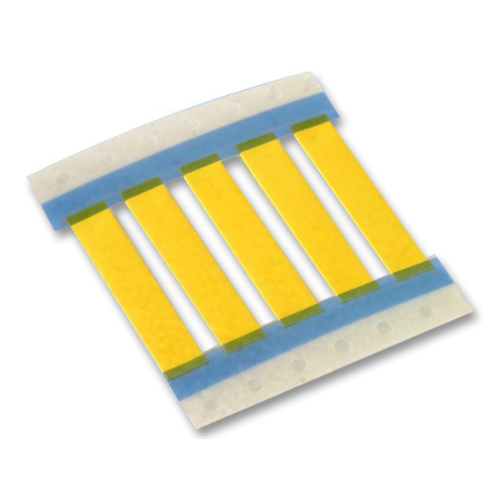

TE Connectivity TMS-SCE-1/8-2.0-4 Heat-Shrink Wire Identification Sleeve, Yellow, 1/8 in — BOLTON SKU 55611.
About the TE Connectivity TMS-SCE-1/8-2.0-4 Heat-S Heat Shrink
TE Connectivity TMS-SCE-1/8-2.0-4 heat shrink tubing is a Raychem marker sleeve intended for permanent wire and harness identification rather than for insulation alone. The sleeve is extruded from flame-retarded, radiation-crosslinked polyolefin and recovers onto the conductor when heated, locking the printed legend in place. This variant carries the 1/8 in size designation and is supplied in yellow. Sleeves are designed to be printed on computer-driven thermal-transfer or dot-matrix printers, and the printed marks meet the permanence requirements of SAE AS81531 4.6.2 and MIL-STD-202F both before and after shrinking, so legends survive abrasion, cleaning solvents, fuels and oils. The sleeve material meets the performance requirements of SAE-AMS-DTL-23053/5, classes 1 and 3. Operating temperature range is -55 °C to +135 °C, the minimum recovery temperature is +85 °C and the maximum storage temperature is +40 °C.
Key specifications
| Product family | Raychem TMS-SCE marker sleeve |
|---|---|
| Material | Flame-retarded, radiation-crosslinked polyolefin |
| Size designation | 1/8 in |
| Colour | Yellow |
| Operating temperature | -55 °C to +135 °C |
| Minimum recovery temperature | +85 °C |
| Maximum storage temperature | +40 °C |
| Material specification | SAE-AMS-DTL-23053/5, classes 1 and 3 |
| Mark permanence | SAE AS81531 4.6.2 and MIL-STD-202F |
| Printing method | Thermal-transfer or dot-matrix printers |
Typical applications
Yellow sleeves at the 1/8 in size are typically applied to smaller-gauge signal and control conductors, where an identifier must stay readable for the life of the harness. Colour coding at this size is often used to separate circuit families within a single loom during build and later fault-finding. Because the marking system is qualified against military permanence requirements, the sleeves suit aerospace and defence harness manufacture and repair.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
