Description

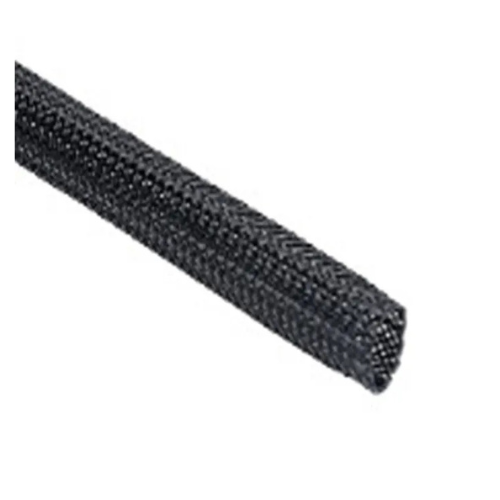

HellermannTyton 170-81004 HEGPETFR08 Braided Sleeving, PET, Black, 100 m Reel — BOLTON SKU 55683.
About the HellermannTyton 170-81004 HEGPETFR08 Bra Cable Manag
HellermannTyton 170-81004 HEGPETFR08 cable management sleeving is the 8 mm nominal-diameter size in HellermannTyton’s flame-retardant polyester braided range. It closes over bundles between 7 mm and 13 mm, which makes it a size for multi-core looms and small trunk runs rather than single leads, and it is supplied here on a 100 m reel; 400 m, 500 m and 1000 m reels are also listed in the range. The braid is black with a grey identification yarn. Alongside FMVSS 302 Type B and UL 1441 VW-1 flammability ratings and UL recognition under file E197993, this size is listed against EN 45545-2, the European fire-safety specification for railway rolling stock. The working temperature range is minus 50 degrees C to plus 150 degrees C, the melting point is plus 250 degrees C, and the material is halogen-free and compliant with RoHS and ELV. The manufacturer cites public transport, aerospace and telecommunications among its intended uses.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer part number | 170-81004 |
| Product designation | HEGPETFR08 |
| Material | Polyester (PET), halogen-free |
| Nominal diameter | 8 mm |
| Bundle range | 7 to 13 mm |
| Colour | Black with grey identification yarn |
| Reel length | 100 m |
| Operating temperature | -50 to +150 degrees C |
| Melting point | +250 degrees C |
| Standards | FMVSS 302 Type B, UL 1441 VW-1, EN 45545-2 (UL file E197993) |
Typical applications
A 7 to 13 mm bundle range covers the trunk sections of a harness where several branches have been gathered together, along with power feeds and multi-core control cables. Sleeving at this size is normally applied where a loom is routed along structure or through a cable tray and needs protection against chafing at supports and pass-throughs. The EN 45545-2 listing makes this size relevant to rolling stock and other enclosed passenger environments, and the 100 m reel is a practical quantity for a single vehicle or cabinet build.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
