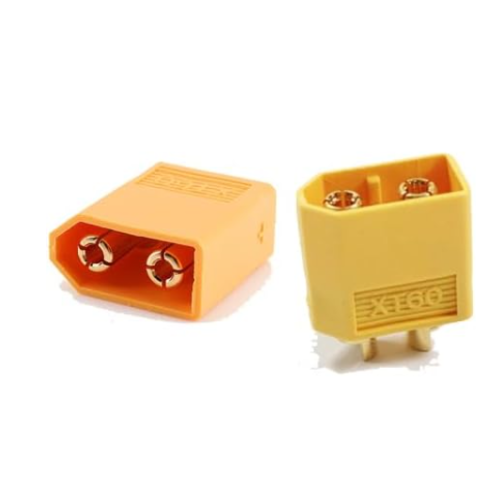

XT60 Male Battery Power Connector, 2-Pin, Solder Type — BOLTON SKU 56155.
About the XT60 Male Battery Power Connector, 2-Pin Soldering
This XT60 Male Battery Power Connector 2-Pin is the male half of the widely adopted XT60 DC power connector pattern used on lithium battery packs and their loads. The XT60 format pairs two gold-plated bullet contacts inside a polarised, keyed nylon housing, so packs cannot be connected with reversed polarity and the contacts are shrouded against accidental shorting. The design is named for its nominal 60 A continuous current class, and terminations are solder buckets that accept heavy-gauge silicone battery wire (commonly up to 12 AWG). The nylon body tolerates soldering heat and gives a firm, high-friction mating action that resists vibration disconnects. This listing is for the male connector only; the mating female connector is listed separately.
Key specifications
| Connector pattern | XT60 |
|---|---|
| Gender | Male |
| Positions | 2 (polarised, keyed) |
| Termination | Solder bucket |
| Current class | 60 A continuous (pattern rating) |
| Contacts / housing | Gold-plated bullet contacts, nylon housing |
| Typical wire size | Up to 12 AWG |
Typical applications
Fitted to UAV and RC lithium battery packs, chargers, power leads and test harnesses as the male side of the battery interface. Its polarised shell and 60 A class make it a default choice for small-UAS propulsion batteries and bench power connections.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Uav Power Energy.
