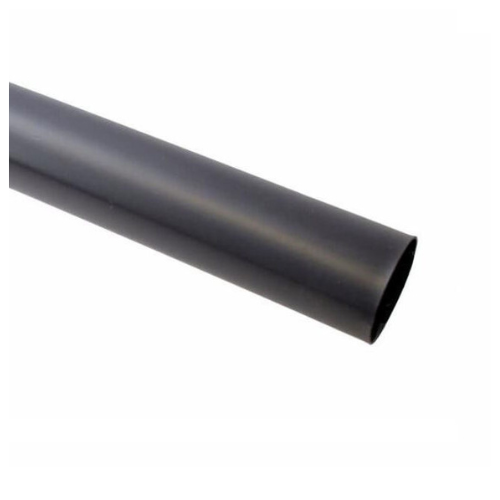

M23053/16-001-0 TUBING,THERMOFIT DR-25 1/2″BLACK — BOLTON SKU 56659.
About the M23053/16-001-0 Heat Shrink Tubing
M23053/16-001-0 is heat-shrinkable tubing procured against MIL-DTL-23053/16, the detail sheet for flexible elastomeric crosslinked polyolefin sleeving; the item designation names the TE Connectivity (Raychem) Thermofit DR-25 product family the sheet is commonly supplied against. Datasheet data for the /16 family gives a shrink of 50 percent or more radially and 10 percent or less axially, the usual 2:1 description, a continuous operating temperature of -75 °C to +120 °C, a minimum shrink temperature of 135 °C, self-extinguishing flammability behaviour, and high resistance to aviation and diesel fuels, hydraulic fluids and lubricating oils. The -001 dash number is the 1/4 in size: distributor listings for this exact part number give a minimum expanded inside diameter of 0.250 in (6.4 mm) recovering to 0.125 in (3.2 mm) maximum, over a minimum recovered wall of 0.035 in (0.89 mm). The trailing -0 is the black colour code, the standard colour for the family.
Key specifications
| Military part number | M23053/16-001-0 |
|---|---|
| Standard | MIL-DTL-23053/16 |
| Product family (per designation) | TE Connectivity (Raychem) Thermofit DR-25 |
| Material | Flexible elastomeric crosslinked polyolefin |
| Shrink | 50 percent or more radial, 10 percent or less axial (2:1) |
| Size | 1/4 in |
| Expanded inside diameter, minimum | 0.250 in (6.4 mm) |
| Recovered inside diameter, maximum | 0.125 in (3.2 mm) |
| Minimum recovered wall thickness | 0.035 in (0.89 mm) |
| Continuous operating temperature | -75 °C to +120 °C |
| Minimum shrink temperature | 135 °C |
| Flammability | Self-extinguishing |
| Colour | Black (colour code 0) |
Typical applications
Diesel-resistant elastomeric sleeving of this type jackets harness runs on aircraft, ground-support equipment and military vehicles, where looms sit in engine bays and wheel arches and meet fuel, oil and hydraulic fluid as well as abrasion. At 1/4 in expanded and recovering to 1/8 in, this dash size covers small bundles, breakouts and individual heavy conductors rather than a full trunk. The wide low-temperature capability suits equipment stored or operated in cold conditions. Confirm the inch size required at RFQ, since catalogue descriptions for this part number are not consistent.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
