Klauke 102R6 Uninsulated Tube Cable Lug 10 mm2, M6 — BOLTON SKU 57469.
About the Klauke 102R6 Uninsulated Tube Cable Lug

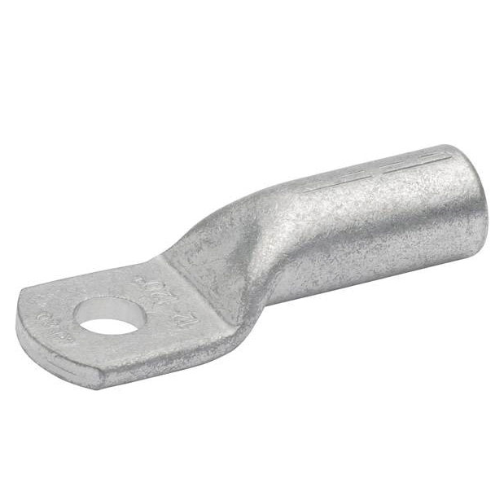

The Klauke 102R6 Uninsulated technical component is a tube cable lug — a ring terminal with a closed tubular barrel — sized for a 10 mm2 conductor and an M6 stud. The barrel is a length of seamless tube into which the stripped conductor is inserted before the lug is compressed with a crimping tool, forming a joint along the crimped length; the flattened tongue at the other end carries the bolt hole that goes over the stud or busbar screw. Uninsulated means the lug is supplied bare, so any covering over the finished joint is added separately as heat-shrink sleeving or a boot, and the crimp itself can be inspected before it is covered. Both the 10 mm2 conductor size and the M6 hole have to be matched to the installation: a lug crimped onto the wrong cross-section will not develop the intended joint. Die profile, crimp tool selection, material and plating should be taken from the Klauke catalogue at enquiry.
Key specifications
| Attribute | Value |
|---|---|
| Brand | Klauke |
| Part number | 102R6 |
| Product type | Tube cable lug (ring terminal) |
| Conductor cross-section | 10 mm2 |
| Stud size | M6 |
| Insulation | Uninsulated |
| BOLTON SKU | 57469 |
Typical applications
A 10 mm2 lug with an M6 tongue terminates supply and earthing conductors onto busbars, terminal studs, switchgear and distribution boards, and onto equipment earth points in cabinets and vehicles. The uninsulated form is chosen where the connection is inside an enclosure, where the joint has to be visually inspected after crimping, or where the covering is applied to a specification of its own. Matching the crimp die to the lug and conductor is part of the installation procedure and should be settled before the tooling is selected.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
