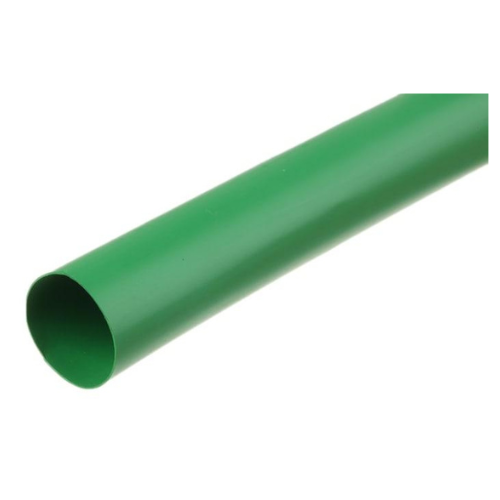

TE Connectivity RNF-100-1/2-5-STK Heat Shrink Tubing, 12.7 mm, 2:1, Green, 1.2 m — BOLTON SKU 57955.
About the TE Connectivity RNF-100-1/2-5-STK Heat S Heat Shrink
TE Connectivity RNF-100-1/2-5-STK heat shrink tubing is a heat-shrinkable polyolefin sleeve from the Raychem RNF-100 family, supplied in green at a nominal 1/2 in (12.7 mm) size and cut to 1.2 m lengths. The part number carries the specification directly: RNF-100 is the tubing family, 1/2 is the as-supplied inside diameter in inches, 5 is the colour code for green, and STK indicates the product is supplied as stock-length pieces rather than on a spool. The 2:1 shrink ratio means the tubing recovers to approximately half its supplied inside diameter when heated, so a 12.7 mm sleeve closes down onto objects of roughly 6.4 mm and above — one size therefore covers a spread of conductor, splice and connector-tail diameters. Recovery is radial rather than longitudinal, so the installed length stays close to the length cut, and heating is by hot-air gun or oven.
Key specifications
| Manufacturer | TE Connectivity (Raychem) |
|---|---|
| Part number | RNF-100-1/2-5-STK |
| Product family | RNF-100 |
| Material | Heat-shrinkable polyolefin |
| Supplied inside diameter | 1/2 in (12.7 mm) |
| Shrink ratio | 2:1 |
| Colour | Green (colour code 5) |
| Supplied length | 1.2 m |
Typical applications
Green tubing is generally chosen where colour identifies a circuit function or a particular harness group, so this size tends to be held for insulating and identifying larger conductors and splice bundles rather than fine signal wire. At 12.7 mm as supplied it suits connector backshell tails, multi-way splices, battery and power leads, and strain relief over cable transitions. The 1.2 m cut length is convenient for bench work and field repair kits where pieces are cut to order rather than fed from a reel.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
