Description

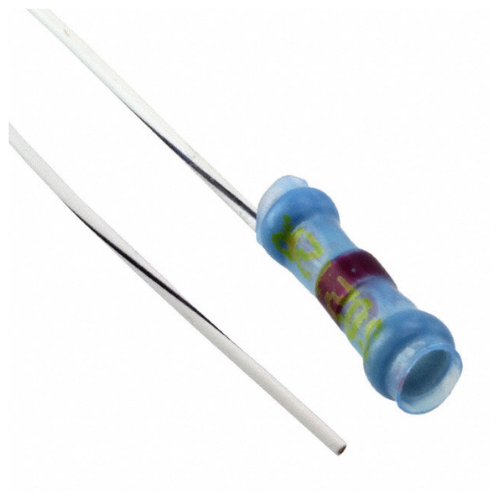

S02-12R-SolderSleeve, Heat-Shrinkable, 3.68 mm Shield Terminator — BOLTON SKU 59449.
About the S02-12R-SolderSleeve Heat-Shrinkable 3.68 mm Shield
Solder sleeve shield terminators are one-piece devices that combine a heat-shrinkable outer sleeve with an internal solder preform, so a screened cable can be grounded without separate soldering and insulating operations. The braid or shield is dressed back, the ground lead is laid into the sleeve, and the assembly is heated with a hot-air or infrared tool until the solder flows and the sleeve recovers around the joint. The recovered sleeve then provides mechanical support and environmental protection over the soldered connection. This variant is catalogued as S02-12R-SolderSleeve heat-shrinkable 3 68 mm (3.68 mm), the S02-12R code and the 3.68 mm size identifying the sleeve dimension for the cable and lead combination it is built to accept. It is supplied as part of BOLTON’s EMI/EMC shielding and interconnect range; installation should follow the device manufacturer’s published processing instructions, which can be requested with the quotation.
Key specifications
| Attribute | Value |
|---|---|
| Product type | Solder sleeve shield terminator |
| Catalogue designation | S02-12R |
| Size as designated | 3.68 mm |
| Construction | Heat-shrinkable sleeve with integral solder preform |
| Installation | Hot-air or infrared heating tool |
| Function | Braid or shield to ground-lead termination |
| BOLTON SKU | 59449 |
Typical applications
Shield terminations of this kind are used where a screened cable must be grounded to a connector backshell, a chassis point or a pigtail lead in harnesses for defence, aerospace, UAV and industrial electronic equipment. The 3.68 mm size suits small-diameter screened cables in dense loom work, where a soldered braid tail plus separate insulation would be bulky. They are also used in MRO and repair work when an existing shield termination has to be remade in situ.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Emi Emc Shielding.
