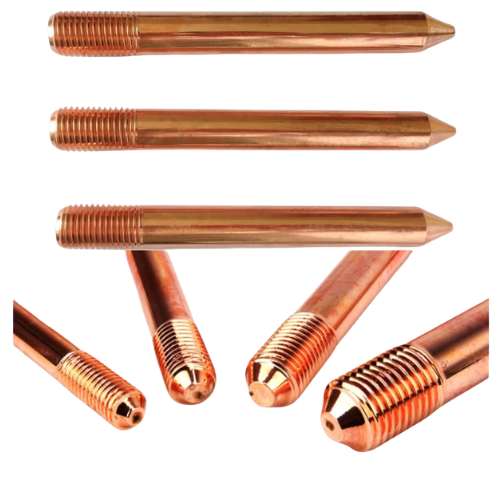

Threaded Rod, 5/8 in UNC-2A, Length 1200 mm, Copper, Low Carbon Steel Core — BOLTON SKU 64762.
About the Threaded Rod, 5/8 in UNC-2A, Length 1200
Catalogue reference rod threaded 5/8in UNC-2A di covers a copper-bonded earth rod of 5/8 in nominal size and 1200 mm driven length. Construction is a low-carbon steel core with a copper bonded outer layer — the Copperbond type — which gives the rod the mechanical strength needed to be driven into ground while presenting a copper surface to the soil. The shank diameter is 14.2 mm and the unit weight is 1.28 kg. The rod is threaded 5/8 in UNC-2A with a thread length (L1) of 30 mm, the standard coupling thread for this size, allowing rods to be joined end to end with a coupling dowel where a single 1200 mm section does not reach the required depth, and allowing a driving stud to be fitted so the thread is not damaged during installation. Thread class 2A is the general-purpose external thread fit, so it mates with standard 2B internal couplings.
Key specifications
| Rod type | Copper-bonded (Copperbond) earth rod |
|---|---|
| Core material | Low carbon steel with copper bonded outer |
| Nominal size | 5/8 in |
| Length | 1200 mm |
| Thread | 5/8 in UNC-2A |
| Thread length (L1) | 30 mm |
| Shank diameter | 14.2 mm |
| Unit weight | 1.28 kg |
Typical applications
Rods of this size and length are installed to form the earth electrode of a building, substation, generator set or lightning protection system, driven vertically into soil and connected to the main earthing terminal by clamp or exothermic joint. The 1200 mm section length is a practical single-driver length that can be coupled to reach lower-resistance soil where a single rod does not achieve the required earth resistance. Copper bonding is specified over solid copper where the electrode must survive driving through firm or stony ground without bending.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
