GHG 516 8306 R3001 16A, 3P Wall Socket — BOLTON SKU 70984.

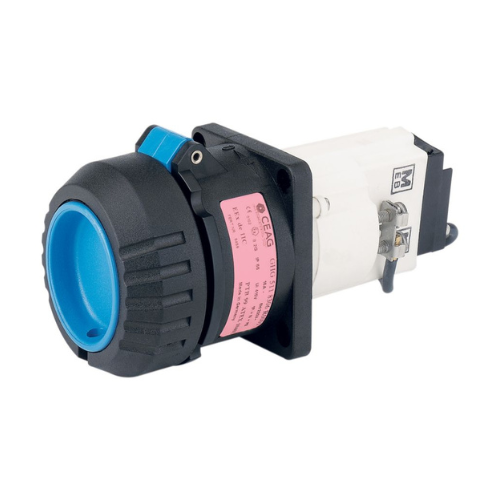

About the GHG5168306R3001 Eaton Wall Socket, 16 A 3P
The GHG5168306R3001 wall socket 16 A is the fixed outlet that receives the matching 16 A three-pole GHG plug. The source data describes it as a flange-type socket, meaning it is mounted through a plate or enclosure face rather than surface-clamped, which is the usual arrangement where the outlet is built into a distribution box or equipment panel. It is rated 16 A at 200 to 250 V with the contact position given as 6 h, and it is released for Zone 2 and Zone 22 gas and combustible dust atmospheres. One cable gland is provided for the incoming supply. It forms part of the Eaton Crouse-Hinds CEAG range of Zone 2 Ex plugs and receptacles, so it should be paired with a plug of the same current rating, pole count, voltage band and clock position to preserve the mechanical keying.
Key specifications
| Manufacturer part number | GHG 516 8306 R3001 |
|---|---|
| Device type | Ex socket outlet, flange mounting |
| Current rating | 16 A |
| Poles | 3-pole |
| Voltage | 200 – 250 V |
| Contact position | 6 h |
| Hazardous area | Zone 2 / Zone 22 |
| Cable entry | 1 cable gland |
Typical applications
A flange-mounted 16 A single-phase Ex outlet is fitted into distribution boxes, control panels and equipment skids to provide a maintenance or utility supply point inside a classified area. Typical loads are inspection lamps, hand tools and instrument power during commissioning and turnaround work.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
