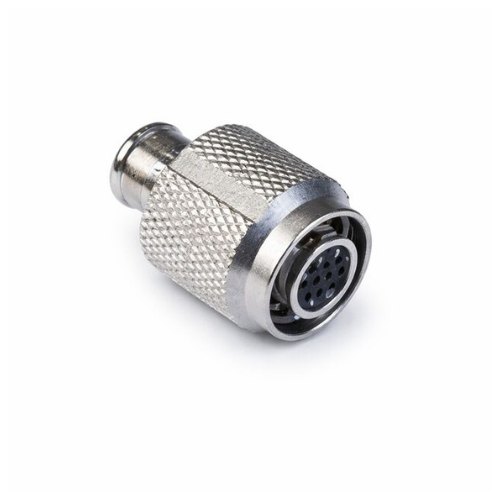

805-001-16M15-37SA Connector Plug, Crimp, Socket Contacts, Nickel — BOLTON SKU 61323.
About the 805-001-16M15-37SA Connector Plug Crimp Socket Contacts
This connector is supplied to the manufacturer’s reference 805-001-16M15-37SA and is listed in the BOLTON catalogue as 805-001-16m15-37sa conn plug 37pos sz15-35. It belongs to Glenair’s Series 80 Mighty Mouse family; Glenair describes the Series 805 as a triple-start coupling connector that delivers EMI protection and vibration resistance in a miniaturised package. The reference identifies a plug shell in size 15 fitted with a 37-way insert arrangement and socket contacts, terminated by crimping rather than soldering, with a nickel shell finish. Crimp socket contacts are set with a controlled tool cycle and can be released with a standard extraction tool, so an individual conductor can be replaced without rebuilding the whole harness. A size 15 shell carrying 37 circuits gives a high contact density for the envelope, which matters where panel area and harness mass are constrained. Any characteristic not carried in the part number is confirmed against the manufacturer’s drawing at quotation.
Key specifications
| Manufacturer reference | 805-001-16M15-37SA |
|---|---|
| Product family | Glenair Series 80 Mighty Mouse — Series 805, triple-start coupling |
| Connector type | Plug |
| Shell size | 15 |
| Contact arrangement | 37 way |
| Contact type | Socket |
| Termination | Crimp |
| Shell finish | Nickel |
Typical applications
A 37-way size 15 plug of this kind is used at equipment-to-harness interfaces where many low-level signal circuits must pass through one small round shell — instrumentation looms, control and data harnesses, and sensor breakouts. The crimp socket arrangement suits assemblies that are built and repaired in the field, since contacts can be inserted or extracted individually rather than as a set. A nickel-finished shell is a common choice for general airborne and ground equipment where an electrically conductive external finish is wanted.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
