SES Sterling A1 Series Nickel Plated Brass Cable Gland, M6 Thread, 2.5mm min., 3mm max. — BOLTON SKU 70158.

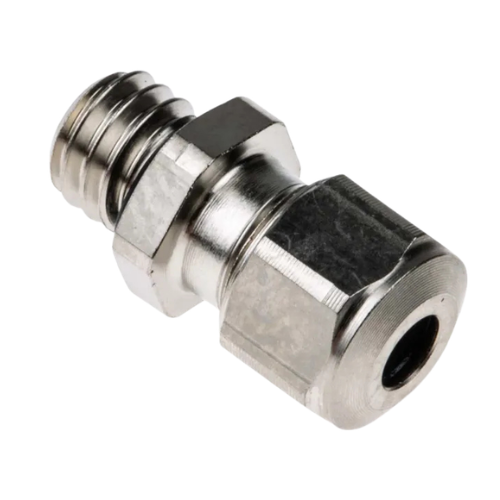

About the 364-6924 Cable Gland, M6 Nickel-Plated Brass
The A1 series is SES Sterling’s metallic cable gland range, built from brass with a nickel-plated finish and listed at IP68. This variant is at the small end of the range: it carries an M6 entry thread and clamps cable with an outside diameter between 2.5 mm and 3 mm, which is a narrow 0.5 mm window and the reason cable OD should be checked against the actual jacket before ordering. A nickel-plated brass body is chosen over a polymer gland where the entry has to conduct, resist mechanical damage, or survive temperatures and chemical exposure that a plastic gland would not. The M6 thread suits a small-format enclosure, junction box or instrument housing where panel real estate around the entry hole is limited.
Key specifications
| Brand | SES Sterling |
|---|---|
| Series | A1 |
| RS stock number | 364-6924 |
| Body material | Brass |
| Finish | Nickel plated |
| Thread size | M6 |
| Minimum cable diameter | 2.5 mm |
| Maximum cable diameter | 3 mm |
| Series ingress rating | IP68 |
Typical applications
The 364-6924 brass cable gland, at M6 and taking 2.5–3 mm cable, is used on sensor bodies, small instrument housings, terminal boxes and control enclosures where the cable is a thin multicore or a screened signal lead rather than a power feed. The metallic body allows the gland to be used as part of a bonded entry when the enclosure and cable screen have to share a continuous metal path. Because the clamping range is tight, it is normally specified alongside a known cable part number rather than selected generically.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
