Description

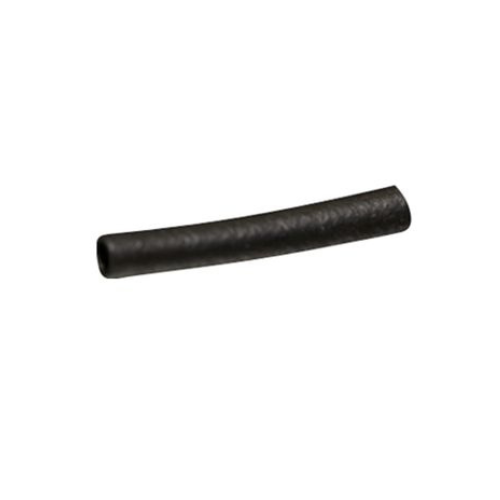

HellermannTyton Helsyn TH Expandable Cable Sleeve, Black, 12mm Diameter, 0.05m Length — BOLTON SKU 69884.
About the HellermannTyton Helsyn TH Expandable Cable Sleeve
The HellermannTyton Helsyn TH Expandable Cable Sleeve (part number 600-02495, type designation TH120X50BK-CR-BK) is a short expandable binding sleeve moulded from chloroprene rubber (CR). Supplied in black with a 50 mm (0.05 m) length and 1.0 mm wall thickness, the sleeve stretches over wiring bundles, and distributor listings rate it for cable diameters up to 23.0 mm. HellermannTyton manufactures the Helsyn TH series to BS 4G 198 Part 1 Type 1, a British aerospace specification for elastomeric sleeves, and quotes an operating temperature range of -65 °C to +95 °C with intermittent exposure to +120 °C. Chloroprene rubber gives the series good resistance to mineral and vegetable oils, fuel, moisture, ozone and UV exposure, and the material carries a UL 94 HB flammability rating with high elongation before break.
Key specifications
| Series | HellermannTyton Helsyn TH |
|---|---|
| Part number | 600-02495 (TH120X50BK-CR-BK) |
| Material | Chloroprene rubber (CR) |
| Colour | Black |
| Sleeve length | 50 mm (0.05 m) |
| Wall thickness | 1.0 mm |
| Max. cable diameter | 23.0 mm (per distributor listing) |
| Specification | BS 4G 198 Part 1 Type 1 |
| Operating temperature | -65 °C to +95 °C (intermittent +120 °C) |
Typical applications
Helsyn TH sleeves are used to bind, bundle and identify sections of wiring harness without adhesives or cable ties, gripping the loom elastically so it can still be repositioned. The BS 4G 198 pedigree and wide temperature rating make this size a practical choice for harness work on airframes, ground vehicles and other equipment where oil, fuel and UV exposure would degrade lesser materials.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
