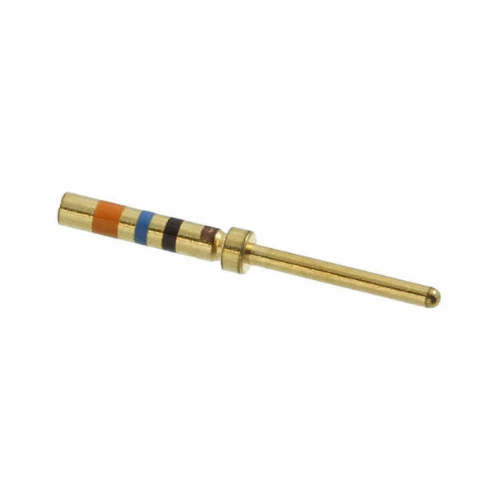

M39029/58-360 Pin Contact 22-28 AWG Size 22D Crimp Gold — BOLTON SKU 52443.
About the M39029/58-360 Crimp Contact
The M39029 prefix identifies electrical contacts qualified to MIL-DTL-39029, the military specification governing crimp contacts used in qualified connector families. Within that system, each slash-sheet and dash-number combination fixes the contact style, size, plating and applicable wire range, so the full designation M39029/58-360 defines one interchangeable, qualified contact regardless of manufacturer. As stated in the product title, this is a pin (male) contact in contact size 22D, accepting 22–28 AWG wire, with a crimp termination and gold plating. Crimp contacts of this family are terminated onto the wire with calibrated crimp tooling and then inserted into the connector cavity, supporting repair and rework since individual contacts can be extracted and replaced. Mating-connector applicability is confirmed from the slash-sheet tables at quotation stage.
Key specifications
| Type | Pin (male) contact |
|---|---|
| Specification | MIL-DTL-39029 (designation M39029/58-360) |
| Contact size | 22D |
| Wire range | 22–28 AWG |
| Termination | Crimp |
| Plating | Gold |
Typical applications
M39029-series crimp contacts are used in aerospace and defence wire-harness manufacture, UAV integration and connector rework across qualified circular and rectangular connector families. They are routine consumables in harness shops and MRO avionics work.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
