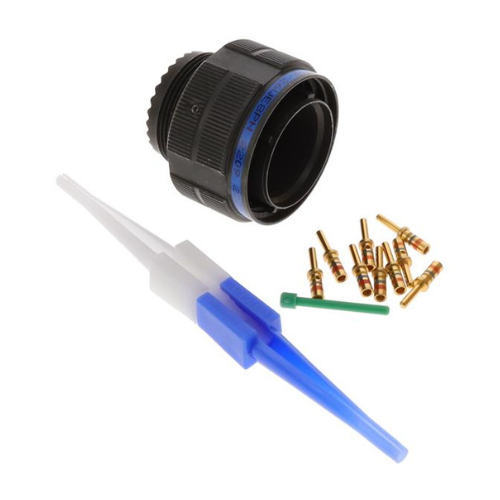

D38999/26WE8PN Connector Plug ,8 Position Circular, size 17 Male Pins Crimp Gold — BOLTON SKU 61828.
About the D38999/26WE8PN Circular Connector
MIL-DTL-38999 Series III is a miniature circular connector range specified for high-density contact arrangements in a compact shell, designed to hold up under shock, vibration and environmental exposure. Within that range the /26 slash sheet is the straight plug with removable crimp contacts. In this part number W identifies the shell material and finish class — aluminium with olive drab cadmium plating over a suitable underplate, electrically conductive, with a class temperature range of -65 to +175 degrees Celsius and a 500 hour salt spray rating. E identifies shell size 17 and the following 8 gives insert arrangement 17-8, an eight-contact layout. P denotes pin contacts and the trailing N denotes keying position N. Contacts are gold plated and terminate by crimp, and the connector uses the threaded coupling characteristic of Series III. This item is an Amphenol Aerospace part.
Key specifications
| Specification | MIL-DTL-38999 Series III |
|---|---|
| Type | Straight plug (D38999/26), cable mounting |
| Shell size | 17 (code E) |
| Insert arrangement | 17-8, eight contacts |
| Contacts | Pin (P), crimp termination, gold plated |
| Shell and finish class W | Aluminium, olive drab cadmium, electrically conductive |
| Class W temperature range | -65 to +175 degrees Celsius |
| Keying | Position N |
| Coupling | Threaded |
| Brand | Amphenol Aerospace |
Typical applications
Series III plugs of this size are used for airframe and avionics interconnect, sensor and actuator cabling, ground-support and shelter systems, and UAV payload and power looms where a sealed, vibration-tolerant circular connector is required. They pair with matching receptacles, contacts, backshells and boot adapters. Contacts, crimp tools and accessories are ordered separately unless otherwise agreed at quotation.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Circular / Rectangular Connectors.
