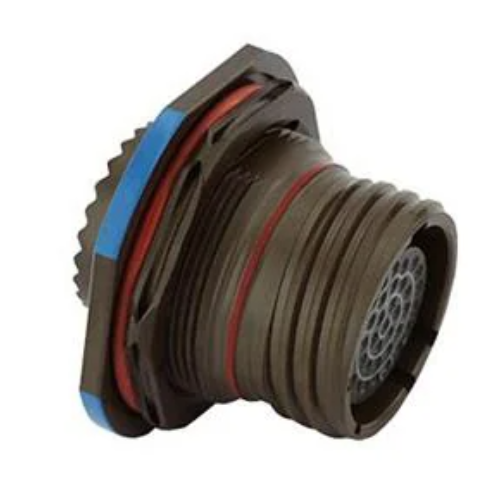

SOURIAU 8D713W26SN CONN CIR 13-26 MIL-DTL-38999 SERIES III — BOLTON SKU 53505.
About the 8D713W26SN Circular Connector
The 8D713W26SN sits in the Souriau (Eaton) 8D family of circular connectors qualified to MIL-DTL-38999 Series III, EN3645 and BACC63. Within that range the 8D7 style prefix denotes a jam-nut receptacle in aluminium with olive drab cadmium plating, the shell size is 13, the insert arrangement is 13-26 and the S code identifies socket (female) crimp contacts. Distributor listings for this part describe it as a receptacle with female socket crimp contacts. The 8D family as a whole uses a quick-coupling self-locking thread with an anti-decoupling mechanism intended to hold the interface mated under sustained vibration, and Souriau publishes series-level figures of 500 mating and unmating cycles, vibration capability to 44 g and operation to 200 degrees C depending on the shell and contact combination chosen.
Key specifications
| Standard | MIL-DTL-38999 Series III (also EN3645, BACC63) |
|---|---|
| Series | Souriau (Eaton) 8D |
| Shell style | Receptacle |
| Shell size | 13 |
| Insert arrangement | 13-26 |
| Contact type | Socket (crimp) |
| Coupling | Quick-coupling self-locking anti-decoupling thread |
| Durability (8D series) | 500 mating / unmating cycles |
Typical applications
Shell size 13 receptacles are used for compact panel and equipment interfaces on aircraft, UAV and ground-vehicle systems, avionics racks, sensor pods and deployable ground equipment. They terminate signal and low-power harnesses in environments with vibration, moisture and EMI exposure. Harness shops and MRO facilities stock them for loom manufacture and for like-for-like panel replacement.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Circular / Rectangular Connectors.
