DRC12-40PB 40 PIN PANEL MOUNT CONNECTOR — BOLTON SKU 53245.
About the DRC12-40PB Connector

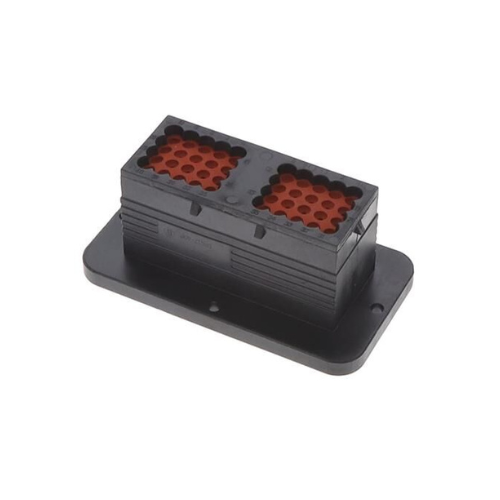

The DRC12-40PB is a 40-position rectangular receptacle from the TE Connectivity DEUTSCH DRC series. DRC connectors are high-density, environmentally sealed rectangular connectors built for applications where moisture, dirt and rough terrain would contaminate or damage electrical connections. The housing is a high-performance thermoplastic with an integral flange for sealed bulkhead or panel mounting, and the series is shock and vibration resistant in line with the heavy-duty DEUTSCH product line. This variant is black, keyed B, and arranged in four rows on a 5.5 mm pitch; it accepts size 16 pin contacts, with a published current rating of 13 A per contact position. Contacts are ordered separately in the required plating and wire range. The receptacle mates with the corresponding 40-way DRC plug assemblies (DRC16-40SB / DRC18-40SB pattern).
Key specifications
| Type | Rectangular receptacle, flange / panel mount |
|---|---|
| Series | TE Connectivity DEUTSCH DRC |
| Positions | 40 (4 rows, 5.5 mm pitch) |
| Contact size | Size 16 pins (ordered separately) |
| Current rating | 13 A |
| Keying | B |
| Housing | Thermoplastic, environmentally sealed, black |
| Mating connectors | DRC16-40SB / DRC18-40SB plug assemblies |
Typical applications
DRC connectors are used on engine and vehicle electronic control units, off-highway and defence vehicle wiring, and other harsh-environment electrical systems needing a sealed multiway bulkhead connection. They also appear in UAV ground equipment and industrial machinery interconnects.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Contacts & Terminations.
