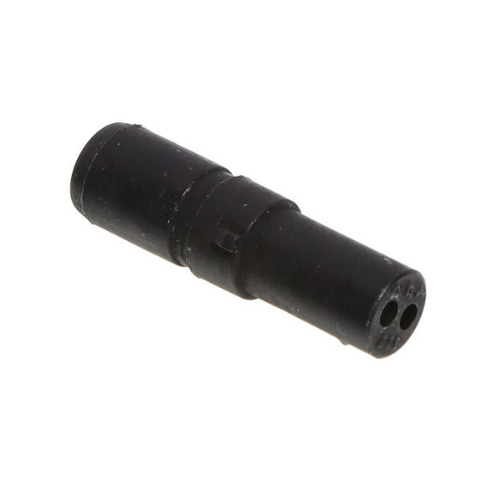

120-8552-100 Circular Connector, Mini Sure-Seal Serie — BOLTON SKU 61298.
About the 120-8552-100 Circular Connector
The 120-8552-100 is a cable-mount plug from ITT Cannon’s Mini Sure-Seal series of miniature sealed circular connectors. The series uses a one-piece moulded body that achieves an IP67 ingress-protection rating in the mated condition, protecting the contact system against dust and temporary immersion. This part is the 2-contact plug variant, with crimp-terminated copper-alloy contacts and a keyed mating interface so the plug can only be engaged in the correct orientation. Distributor listings quote an operating temperature range of −40 °C to +105 °C. Mini Sure-Seal connectors were developed for vehicle and industrial equipment that needs compact, environmentally sealed point-to-point connections, and the family is specified against automotive and industrial requirements covering vibration, shock, salt-spray exposure and low contact resistance. Crimp contacts appropriate to the conductor size are selected and ordered separately where required.
Key specifications
| Manufacturer | ITT Cannon |
|---|---|
| Series | Mini Sure-Seal |
| Type | Miniature circular cable-mount plug |
| Number of contacts | 2 |
| Sealing | IP67 (mated) |
| Termination | Crimp |
| Operating temperature | −40 °C to +105 °C |
Typical applications
Mini Sure-Seal connectors are used for sealed inline connections in vehicle electrics, industrial machinery, UAV and ground-support equipment wiring, and other harnesses exposed to moisture, dust and vibration. They suit sensor, actuator and small power circuits that must remain serviceable in the field.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
