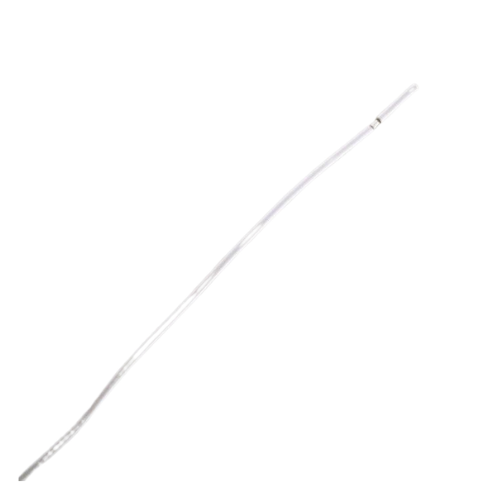

M22759/32-26-9 26 AWG Light Jacketed Wire, White — BOLTON SKU 59055.
About the M22759/32-26-9 Aerospace Wire
This item is airframe hook-up wire to the /32 detail of SAE AS22759 (M22759, formerly MIL-W-22759), size 26 AWG, in white. The M22759/32 construction pairs a soft-annealed, tin-plated copper stranded conductor with a single-layer, irradiation-crosslinked, extruded ETFE insulation in a lightweight wall — rated 600 V with a conductor temperature rating of 150 °C. Crosslinked ETFE gives the wire high mechanical toughness for its weight and diameter together with strong resistance to chemicals, fluids and radiation, which is why the /32 lightweight family is a standard choice for weight- and space-critical airborne wiring. The -26 element of the part number designates the 26 AWG conductor size and the final -9 the white insulation colour, coded per the specification’s colour system.
Key specifications
| Specification | SAE AS22759/32 (M22759/32, formerly MIL-W-22759/32) |
|---|---|
| Size | 26 AWG, stranded |
| Conductor | Tin-plated, soft-annealed copper |
| Insulation | Irradiation-crosslinked extruded ETFE, lightweight wall |
| Voltage rating | 600 V |
| Temperature rating | 150 °C |
| Colour | White (colour code 9) |
Typical applications
M22759/32 wire is used throughout aerospace, defence and UAV electrical systems for airframe wiring, harness fabrication and repair where light weight, small diameter and fluid resistance are required. It is a standard stock wire in avionics shops and harness manufacturing cells.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
